Marine Aluminum Inclined Ladder

Marine Aluminum Inclined Ladder

Made of aluminum, this marine inclined ladder is used in the accommodation cabin of various vessels. This marine aluminum inclined ladder meets the requirements of GB738-77 standard. Certificates like CCS, DNV, BV, LR, KR, NK, etc can be offered according to customer°Įs requirements. This marine inclined ladder has a light weight so it is portable.

Features:

1. Standard: GB738-77

2. Application: used in the accommodation cabin of various vessels

3. Certificate: CCS, ABS, KR, NK, DNV, LR, RINA, etc.

4. Light weight, easy to carry

Drawing and specifications:

Marine Aluminum Inclined Ladder

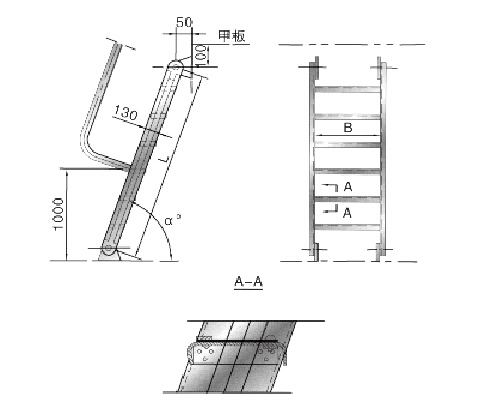

Drawing of Marine Aluminum Inclined Ladder

Inclination (a)

B (mm)

L (mm)

60°„

500, 600

800-3000

65°„

70°„

Identification example:

Inclination angle a=60°„, width of ladder B=600mm and length of ladder L=2000mm for marine aluminum inclined ladder----marine aluminum inclined ladder 60°„°Ń600°Ń2000 GB738-77

Product showing:

Marine Aluminum Inclined Ladder

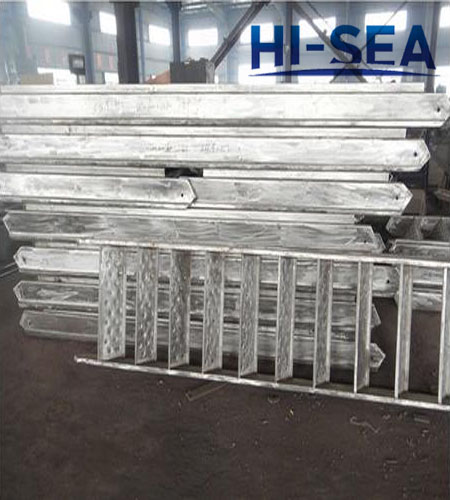

Aluminum Inclined Vessel Ladder

Marine Aluminum Inclined Ladder

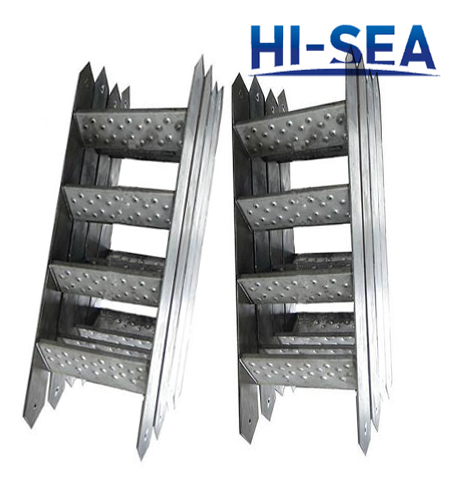

Aluminum Inclined Ship Stair


Certiifcates:

Marine Aluminum Inclined Ladder
