Marine Engine Room Inclined Ladder

[Search Related Products]

Marine Engine Room Inclined Ladder

Marine Engine Room Inclined Ladder

This marine inclined ladder is used in the engine room of various vessels. With the features of reliable structure and skid resistance, this engine room inclined ladder is made of steel. Our inclined ladder is designed in accordance with the ISO standard and it meets the requirements of all kinds of Classification Society. Therefore, certificates like CCS, BV, DNV, NK, LR, KR, and RINA are available according to clients need.

Features:

1. Material: steel

2. Standard: CB*833-87

3. Certificates: CCS, DNV, BV, LR, KR, NK, etc.

4. Types: A, B, C, D

5. Inclination: 55, 60

6. Width of ladder: 450mm, 600mm

7. Height of ladder: 7502850mm, 30004050mm

8. Handrail optional

Drawing and specifications:

Marine Engine Room Inclined Ladder

Drawing of Marine Engine Room Inclined Ladder

Type

Stringer

Step

Inclination

(a)

Width of ladder

(B: mm)

Height of ladder

(H: mm)

A

Flat steel

Checker plate

55, 60

450, 600

7502850

B

Steel mesh

C

Angle steel

Checker plate

30004050

D

Steel mesh

No.

Type

Number of steps

H

(mm)

H1

(mm)

H2

(mm)

H3

(mm)

L

(mm)

Weight (kg)

B=450mm

B=600mm

a=55

a=60

a=55

a=60

a=55

a=60

A/C

B/D

A/C

B/D

A/C

B/D

A/C

B/D

1

A, B

3

750

230

170

120

911

892

33.8

32.9

32.5

31.6

38.7

37.4

37.4

36.1

2

3

900

240

190

230

1124

1065

38.6

37.7

37.1

36.2

43.8

42.5

42.2

40.9

3

4

1050

230

180

180

1307

1238

47.0

46.1

45.2

44.6

53.7

52.5

51.9

50.7

4

5

1200

230

165

115

1490

1412

55.5

55.1

53.5

53.1

63.6

62.7

61.4

60.5

5

5

1350

235

185

225

1673

1585

60.3

59.9

58.1

57.7

68.6

67.7

66.3

65.4

6

6

1500

230

180

170

1856

1758

68.7

68.5

66.2

66.0

78.5

77.8

75.8

75.1

7

7

1650

230

155

115

2039

1931

77.2

77.3

74.1

71.5

88.6

88.1

85.6

85.1

8

7

1800

235

185

205

2222

2104

82.0

82.1

78.9

79.0

93.6

93.1

90.4

89.9

9

8

1950

230

180

160

2406

2278

90.4

90.7

87.0

87.3

103.4

103.2

99.8

99.6

10

8

2100

240

190

230

2589

2451

95.1

95.7

91.7

92.0

108.6

108.4

104.8

104.6

11

9

2250

230

180

230

2772

2624

103.8

104.3

99.9

100.4

118.5

118.4

114.4

114.3

12

10

2400

230

180

150

2955

2797

112.2

112.9

108.0

108.7

128.3

128.4

123.9

124.0

13

10

2550

240

190

200

3138

2970

117.2

117.9

112.7

113.4

133.6

133.7

128.9

129.0

14

11

2700

230

180

220

3321

3144

125.5

126.5

120.8

121.8

143.5

143.8

138.5

138.8

15

12

2850

230

180

140

3504

3317

133.9

135.1

128.9

130.1

153.2

153.8

117.9

148.8

16

C, D

12

3000

235

185

230

3687

3490

158.8

160.0

152.5

153.7

178.4

179.2

171.8

172.4

17

13

3150

230

180

210

3993

3663

168.2

169.6

161.5

162.9

189.3

190.1

182.3

183.1

18

14

3300

230

180

130

4951

3837

177.5

179.2

170.5

172.2

200.1

201.0

192.8

193.7

19

14

3450

235

185

210

4237

4019

183.5

185.2

176.2

177.9

206.4

207.3

198.7

199.6

20

15

360

230

180

200

4430

4183

192.9

194.8

185.2

187.1

217.2

218.4

209.1

210.3

21

16

3750

230

180

120

4603

4356

202.3

204.4

194.3

196.1

227.9

229.3

219.5

220.9

22

16

3900

235

185

190

4786

4529

208.3

210.4

199.9

202.0

234.3

235.7

225.5

226.9

23

17

4050

230

180

190

4969

4703

217.6

230.0

209.0

211.4

245.1

216.7

236.0

237.6

Identification example:

Inclination a=60 and width of ladder B=600mm, height of ladder H=2400mm for type A marine engine room inclined ladder-----A60-6002400 CB*833-87

Product showing:

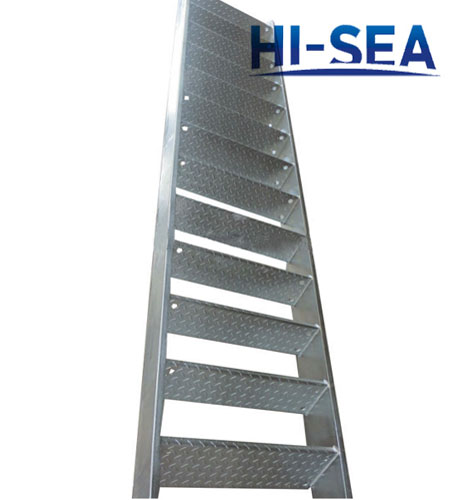

Marine Engine Room Inclined Ladder

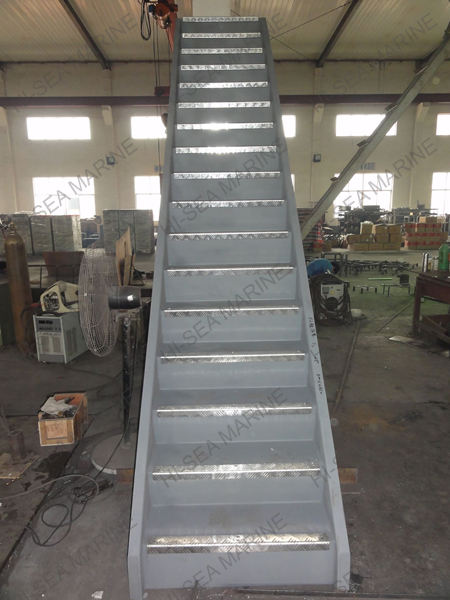

Engine Room Inclined Ship Ladder

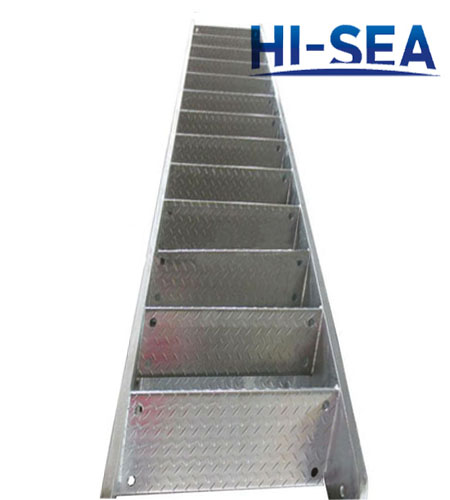

Marine Engine Room Inclined Ladder

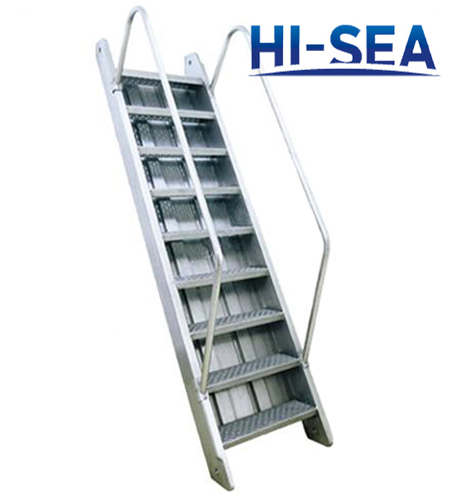

Vessel Engine Room Inclined Ladder

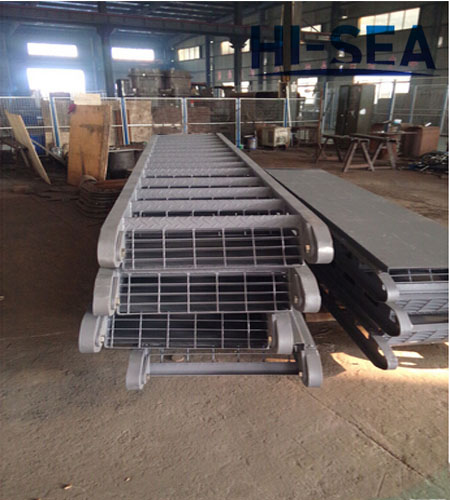

Marine Engine Room Inclined Ladder
