Marine Aluminum Pipe Vertical Ladder

Marine Aluminum Pipe Vertical Ladder

This product is a ship pipe vertical ladder made with aluminum. It is used for the crews to go up and down. It is approved by the CB/T670-94 standard and we can offer relevant certificates about this boat ladder like BV, CCS, ABS, GL, LR, etc. Our company can supply various sizes accord with international standard. To meet clients’ special requirements, we also offer OEM service.

Features:

1. Standard: CB/T670-94

2. Number of steps: 2-12

3. Deck height: 800-4000

4. Customized color

5. Light weight, safety and reliable structure

Drawing and specifications:

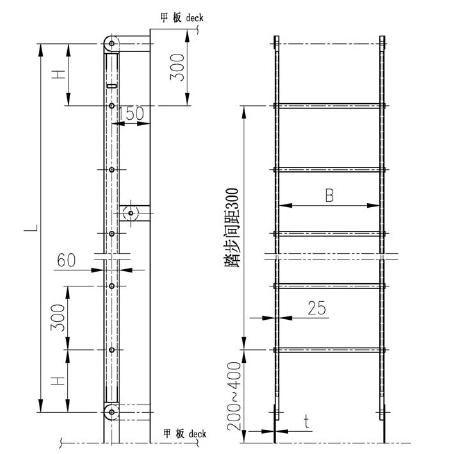

Drawing of Marine Aluminum Pipe Vertical Ladder

Number of steps	Deck height	L	H	t	Weight(kg)
Number of steps	Deck height	L	H	t	B=325	B=400
2	800-1000	600	150	6	3.65	3.73
3	1150-1300	1000	200	6	4.71	4.83
4	1400-1600	1200	150	6	5.34	5.5
5	1750-1900	1600	200	6	6.4	6.6
6	2000-2200	1800	150	6	7.03	7.27
7	2350-2500	2200	200	8	8.43	8.71
8	2600-2800	2400	150	8	9.06	9.38
9	2950-3100	2800	200	8	10.48	10.84
10	3200-3400	3000	150	8	11.11	11.51
11	3550-3700	3400	200	8	12.17	12.61
12	3800-4000	3600	150	8	12.8	13.28

Identification example:

Step width B=400, ladder length L=1200mm for aluminum pipe vertical ladder----aluminum pipe vertical ladder 400×1200 CB/T670-94

Product displaying:

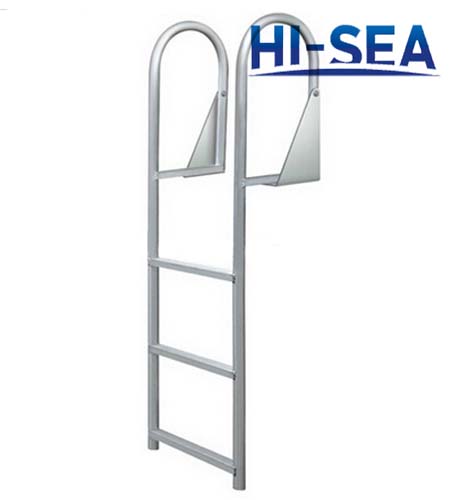

3 Step Aluminum Pipe Vertical Boat Ladder

4 Step Aluminum Pipe Vertical Ship Ladder

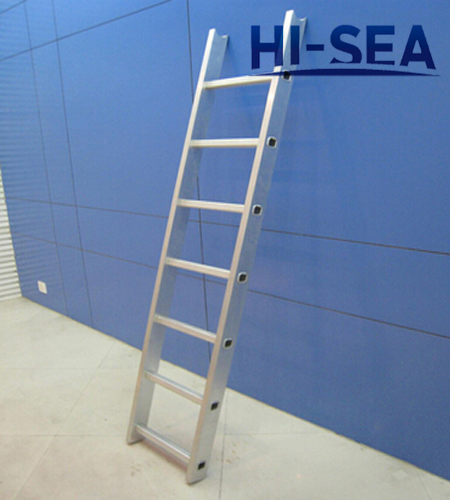

Vessel Aluminum Vertical Ladder

Marine Aluminum Pipe Vertical Ladder

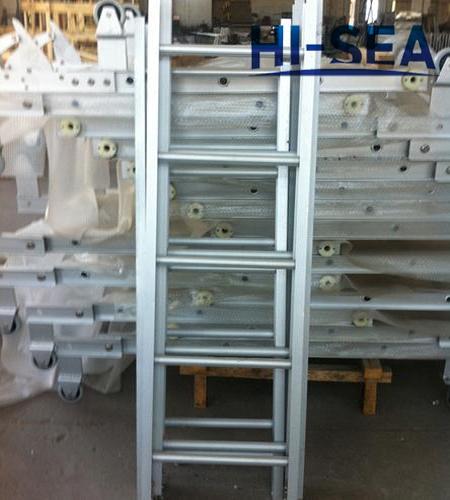

Vertical Aluminum Pipe Ship Ladder
