Marine Aluminum Gangway

[Search Related Products]

Marine Aluminum Gangway

Marine Aluminum Gangway

Marine gangway, it is also called wharf ladder. This marine dock ladder is made of aluminum and used to embark and disembark for personnel when ships mooring alongside a shore. The types of our marine wharf ladder are various. We can supply flat type gangway, bend type gangway, fully-fixed type gangway and detachable type gangway. Besides, the step of the ladder can be designed with hard wood to meet different requirements of clients,

Features:

1. Application: used for crew to embark and disembark when vessels in port

2. Standard: CB*3116-82, JIS F2613-1976

3. Certificate: CCS, BV, ABS, RINA, DNV, NK, GL, LR, etc.

4. Type: A8, A10, A12.5, A15; B8, B10, B12.5, B15

5. Length: 8m-15m

6. Customized sizes

7. OEM service available

Drawing and specifications:

Marine Aluminum Gangway

Drawing of Fully-fixed Type Marine Aluminum Alloy Wharf Ladder (Type A)

Model

Main Size (mm)

Weight

L

I

H

h

A8

8000

3200

350

180

182

A10

10000

4830

500

250

221

A12.5

12500

4830

550

300

296

A15

15000

7230

750

500

362

Marine Aluminum GangwayDrawing of Detachable Type Vessel Aluminum Alloy Wharf Ladder (Type B)

Model

Main Size(mm)

Weight

L1

L2

H

h

B8

4000

4000

350

180

206

B10

5000

5000

500

250

244

B12.5

6250

6250

550

300

319

B15

7500

7500

750

500

388

Product displaying:

Marine Aluminum Gangway

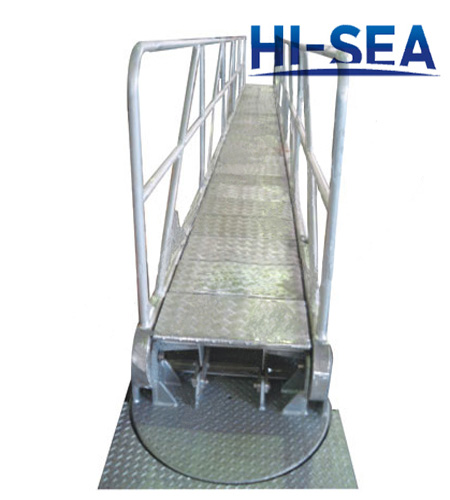

Flat Type Marine Ganyway

Marine Aluminum Gangway

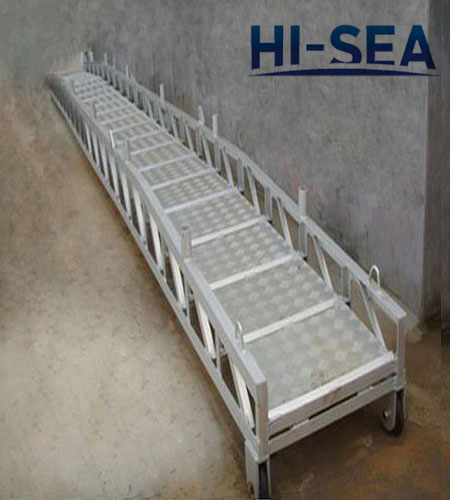

Bend Type Aluminum Ganyway for Boat

Marine Aluminum Gangway

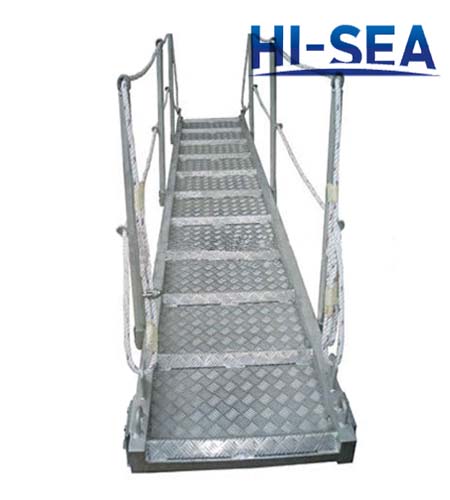

Fixed Type Marine Aluminum Alloy Boarding Stair

Marine Aluminum Gangway

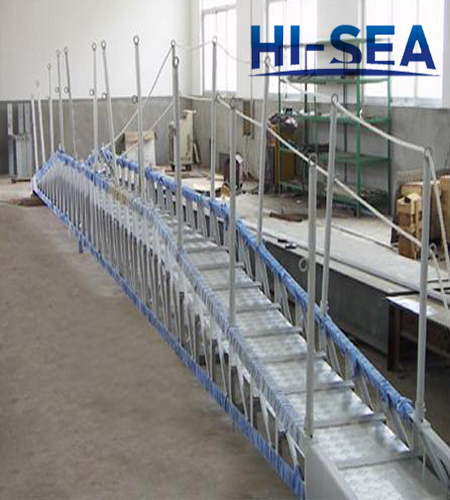

Detachable Type Aluminum Boarding Ladder for Boat

Marine Aluminum Gangway

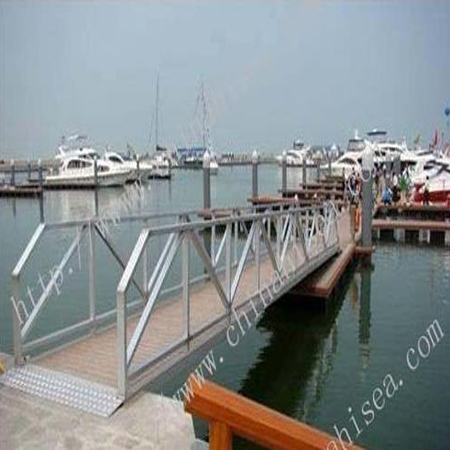

Marine Dock Gangway with Wood Step
