Marine Pilot Ladder

Marine Pilot Ladder

Pilot ladder is used for the pilot to embark or disembark from a ship. The steps of the ladder are made of wood or aluminum alloy, but lower four step are made of rubber with steel lining. The pilot meets the requirement of SOLAS 1974 and is approved by the standard ISO/R799-1968 and JISF2615-1982.

Features:

1. Standard: CB/T3142-94

2. Certificate: CCS, ABS, BV, DNV, LR, KR, NK, etc.

3. Strong structure, durable and safe

4. The count-down fifth wood plate is spreader step

5. 8 short boards between two neighboring spreader steps

6. Distance between two neighboring steps: 310¡À5mm

Drawing and specifications:

Marine Pilot Ladder

Drawing of Marine Pilot Ladder

Type

L

l

Number of steps

Qty of twist stop board

Weight

(kg)

A

2170

1860

7

1

31.6

4960

4650

16

2

55.3

7750

7440

25

3

79.0

9300

8990

30

3

88.65

B

determined by client

8990

30

3

check the construction drawing

Identification example:

Pilot ladder, L= 7750mm, type A----Pilot ladder A7750 CB/T3142-94

Product displaying:

Marine Pilot Ladder

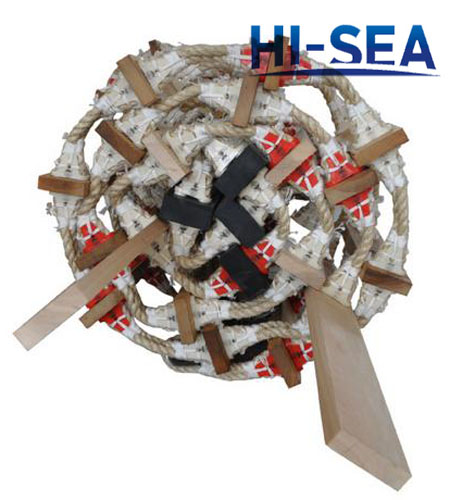

Ship Wooden Pilot Ladder

Marine Pilot Ladder

Ship Aluminum Pilot Ladder

Marine Pilot Ladder

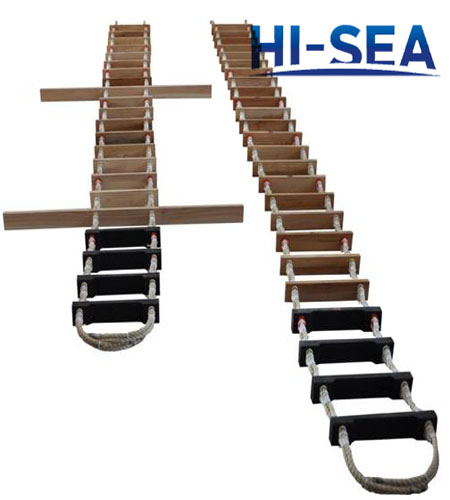

Vessel Wood Pilot Ladder

Marine Pilot Ladder

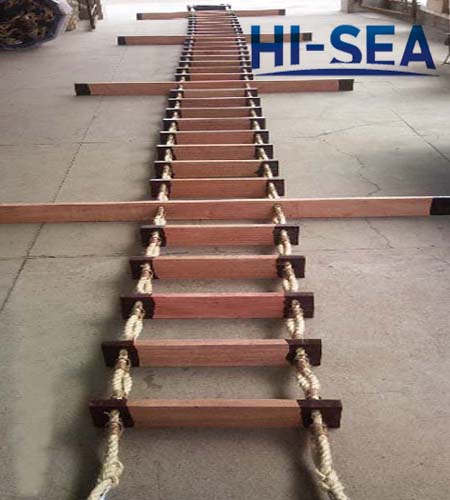

Boat Wooden Pilot Ladder
