Square Diffuser

[Search Related Products]

Square Diffuser

Square Diffuser

Description

The inner cone blade and the outer frame are of a separate structure for installation and adjustment. Blowing out airflow is attached (flat).


MaterialAluminum alloy profile

Surface treatment: electrostatic spray, baking or anodizing

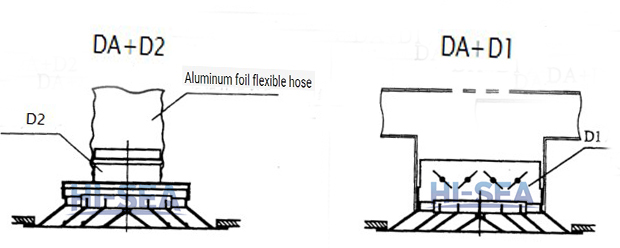

Can be added accessories: (D1)air volume adjustment switch, (D2)square cover

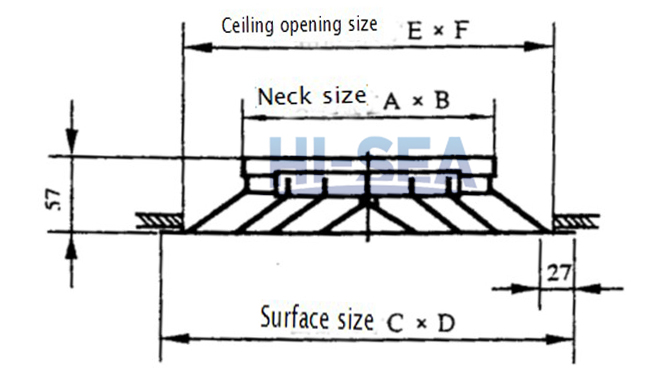

Drawing

Square Diffuser

Square Diffuser

Specification

AB

CD

EF

240240

363363

312312

300300

423423

372372

360360

483483

432432

420420

543543

492492

Technical parameters for your reference

Specification

Jet distance

Air volume

Q m3/h

Central wind speed Vx m/sec

Vx =0.5 m/sec

Vx =0.25 m/sec

S=0.5 m

S=1.0 m

S=2.0 m

S=3.0 m

240240

1.39

-

415-1659

1.69-6.79

0.78-3.12

0.42-1.68

-

300300

0.77-3.73

1.38-2.4

648-2592

0.82-3.28

0.36-1.42

0.18-0.72

0.14-0.56

360360

0.612-7.25

-

933-3700

0.66-2.656

0.32-1.28

0.18-0.72

-

420420

0.96-2.73

2.73

1270-5080

0.756-3.024

0.48-1.92

0.276-1.104

0.12-0.48

Model explanation

DA-4A-300300-D1

DA: Product code

4A: Blow on all sides

300300 AB

D1Accessories

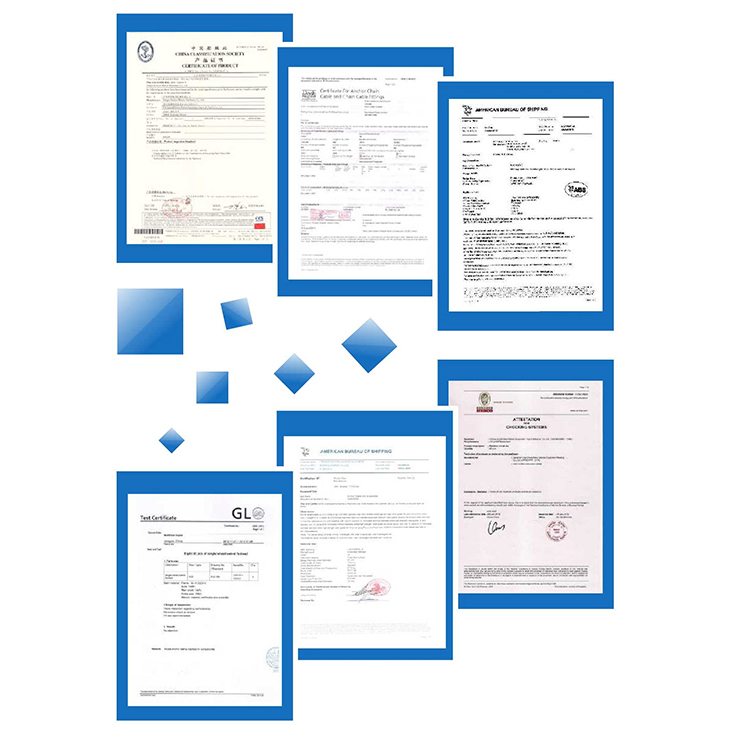

Certification
