Galvanized Steel Diffusion Outlet

[Search Related Products]

GalvanizedSteel DiffusionOutlet

Galvanized Steel Diffusion Outlet



Description

Square is the diffusion surface and neck is square.Each layer of diffusion frame is integrally stamped and formed without solder joints.

Material: galvanized steel or aluminum

Surface treatment: electrostatic spray, baking finish D2

Can be added accessories:(C1) circular rectifier switch, (C2) circular rectifier, (D1) air volume adjustment switch.

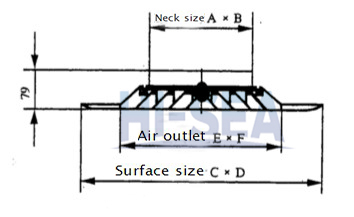

Drawing

Galvanized Steel Diffusion Outlet

Specification

AB (Neck size)

EF(Air outlet)

CD(Surface size

150150

405405

595595 or 603603 Fitted with light steel frame ceiling specifications

200200

250250

300300


Technical parameters

Neck size mm

(Area m2)

Wind speed

M/S

2

2.5

3

3.5

4

4.5

5

150150

(0.0225)

Air volume

162

203

243

284

324

365

405

Total pressure loss

1.1

1.2

1.4

1.8

2.5

3.0

4.0

Arrival distance

1.7-2.5

2-2.9

2.4-3.2

2.5-3.5

2.6-3.9

2.6-3.9

3.0-4.2

NC

-

21

24

27

31

34

37

200200

(0.04)

Air volume

288

360

432

504

576

648

720

Total pressure loss

1.3

1.4

1.9

2.6

3.2

4.2

5.1

Arrival distance

2.3-3.2

2.5-4

3-4.3

3.2-4.6

3.4-5.1

3.6-5.3

3.8-5.5

NC

21

22

25

30

33

37

40

250250

(0.0625)

Air volume

450

563

675

788

900

1013

1125

Total pressure loss

1.4

2.0

3.0

4.0

5.1

6.5

8.0

Arrival distance

3.1-4.2

3.5-5

3.9-5.4

4.2-5.7

4.3-6.2

4.8-6.7

5-7

NC

22

23

27

32

34

37

41

300300

(0.09)

Air volume

648

810

972

1134

1296

1458

1620

Total pressure loss

2.0

3.1

4.2

6.0

7.4

9.4

10.7

Arrival distance

3.8-5.2

4.1-5.8

4.8-6.4

5-7.2

5.4-7.8

5.7-8.2

6-8.5

NC

23

24

29

33

36

39

44

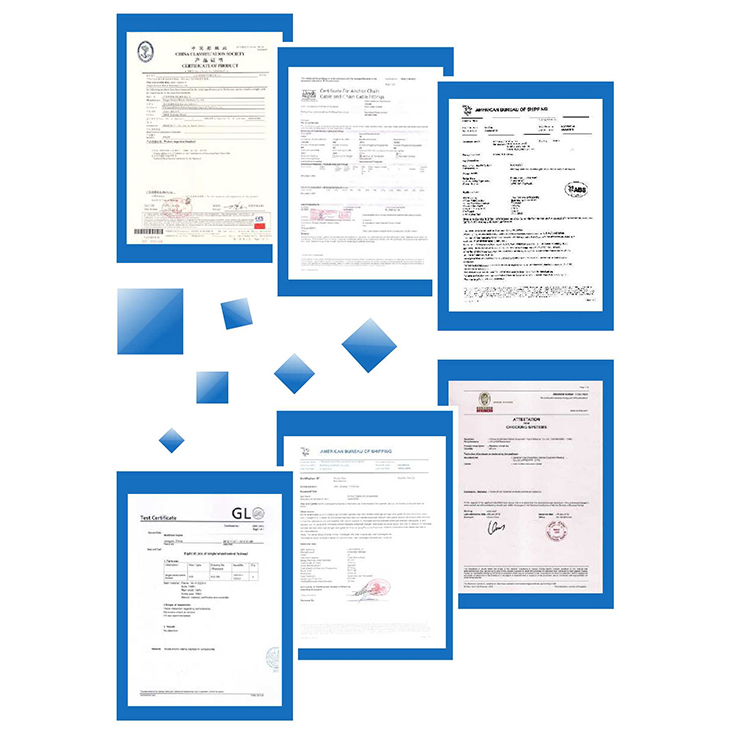

Certification
