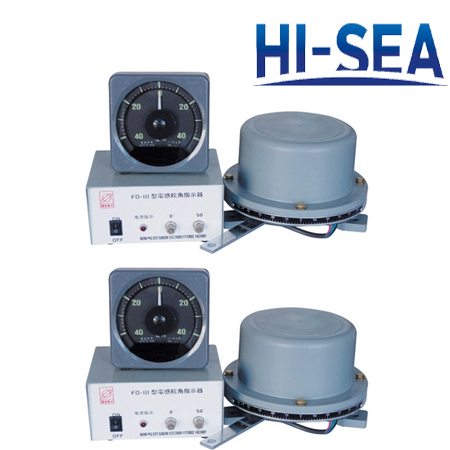

Rudder Angle Indicator
[Search Related Products]
Rudder Angle Indicator
This rudder angle indicator is used to display the direction and angle of rudder blade. It employs a full digital system which completely transforms rudder angle information to standard IEC 61162 statement. It fits perfectly with IMO standards. It can be installed on all kinds of passenger ships or cargo ships. It is an excellent assistant for operator.
Features
▪ Good anti-interference performance and high reliability
▪ Suitable for various vessels
▪ High indicating accuracy
▪ Easy to install and adjust
▪ To output information to other equipment, for example, VDR
Specifications
|
Project |
Data |
|
Transmitter¡¯s Deviation |
¡À0.75¡ã |
|
Precision Class |
1.5 |
|
Maximum Angle |
240¡ã |
|
Power Supply |
AC 110/22V, 50Hz; DC 24V |
|
Working Temperature |
-10¡æ-+55¡æ |
|
Application |
200-100,000 tons ships |
Rudder Angle Indicator
