8-Inch Color Display GPS Plotter

8-Inch Color Display GPS Plotter

8-Inch Color Display GPS Plotter is designed for both fresh water and seawater navigation. It is ideal for vessels which demand high performance. This plotter supports various display modes,such as plotter screen, Nav. Data, satellite information, compass screen. It has selectable C-Map MAX and K-chart, and it also has tide table. The unique daylight design makes you read easily in the sunlight. It is an excellent helper for your navigation.

Features

▪ GOTO track navigation

▪ Perspective view

▪ Backlight

▪ Internal GPS receiver and AIS

▪ Stable performance

Specifications

Project

Data

Display size

8 Color LCD

Waypoints

14,000

Tracks

21,000

Routes

Waypoint up to 169 points each, plus MOB and Track Navigation or Goto Track modes

Basemap

Built-in Onwa K-Chart

External Map

SD Cards slot for C-Map MAX

Plot interval

1s to 99h or 0.01nm to 9.99nm

Plotting scales

0.01nm to 1,000nm

User data storage

Internal backup of user settings, or external SD-card

Alarms

XTE, Anchor drag, arrival, overspeed, AIS alarm

Projection

Mercator projection

Position format

Lat/Lon

Perspective view

On/Off

AIS function

Frequency

156.025 to 162.025 MHz in 25 KHz steps

Output power

2W

Channel bandwidth

25 KHz

Channel step

25 KHz

Modulation mode

25KHz GMSK(AIS,TX AND RX)

25KHz AFSK (DSC,RX only)

Bit rate

9600b/s50ppm(GMSK)

1200b/s50ppm(FSK)

GPS receiver

Acquisition time

Cold start: 27s average

Warm start: 27s average

Hot start: 1s average

Update time

1s

Accuracy

Position: < 2.5m, 95% without S/A

Velocity: 0.1m/s without S/A

Time: 100ns synchronized to GPS time

Interface

NMEA 0138 input, RS232 output

Antenna

HA-017

Dynamics

Altitude: 50,000m Max

Velocity: 500m/s

Acceleration: 4g Max

8-Inch Color Display GPS Plotter

8-Inch Color Display GPS Plotter

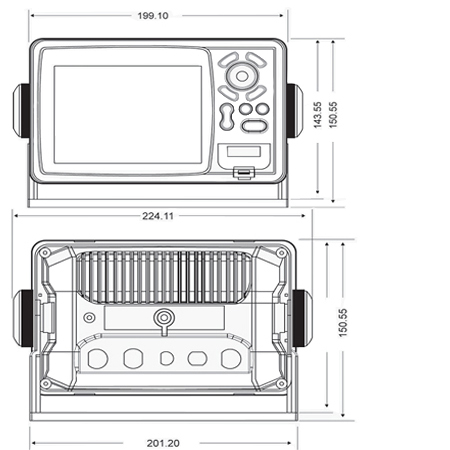

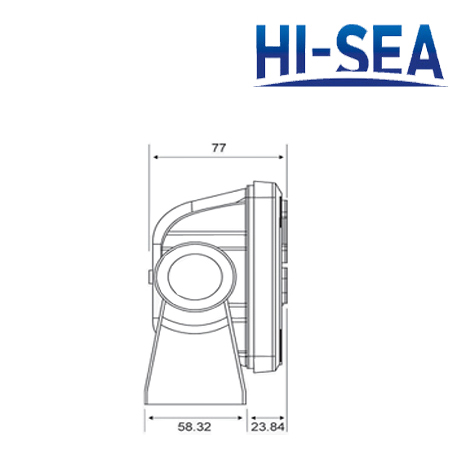

Product Dimension
