Marine Sextant

Marine Sextant

This marine sextant is used to measure the angle between two targets in the distance. It is a kind of reflection type angular measuring optical instrument. Operators could get vessels°Į location via this sextant. The vertical error, error, index error of the instrument should be adjusted before use. If you are interested in this product, please feel free to contact us.

Features

1. This sextant is a kind of reflection type angular measuring optical instrument.

2. It is used to measure the altitude of celestial bodies to obtain a position in navigation.

3. It is With movable arm on the frame

Specifications

Project

Data

Measuring Range

-5°„~130°„

Measuring Accuracy

40 second of arc

Discrimination

8.75 second of arc

Telescope Magnification

3.5X

Field

5°„

Graduation

162mm

Lighting Voltage

3V

Working Temperature

-30°ś-50°ś


Marine Sextant

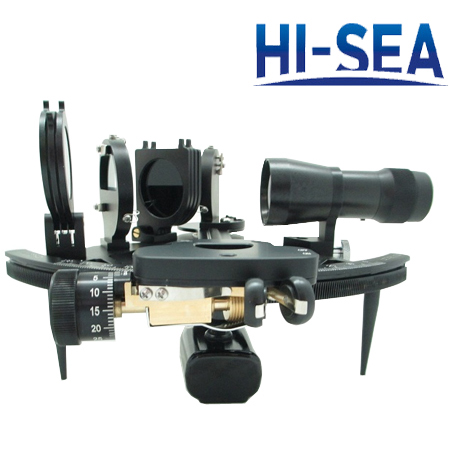

Front View of Marine Sextant

Marine Sextant

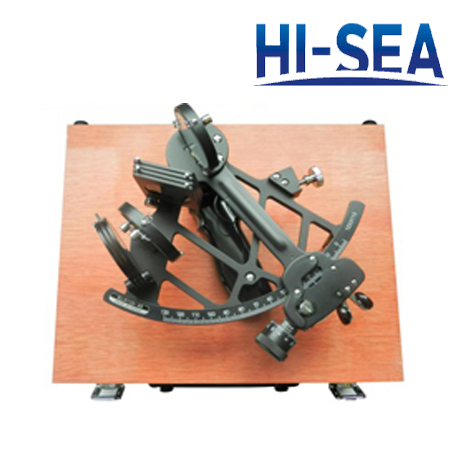

Planform of Marine Sextant
