Depth Finder or Sounder

Depth Finder or Sounder

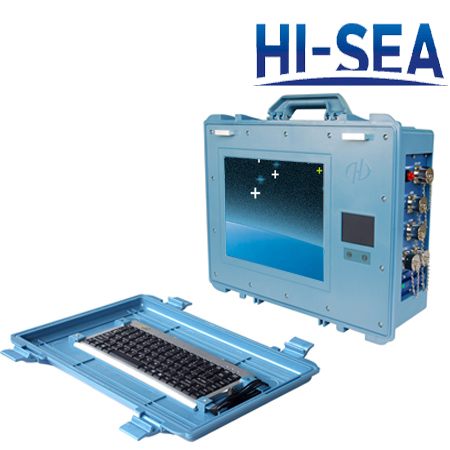

Depth Finder or Sounder is a basic navigation instrument. This product is a digital single-frequency depth finder/sounder. It has the advantages of high resolution, supporting VGA display, real-time windows, high accuracy, etc. The shell is made of PC composite which is effectively waterproof, shockproof and dustproof. The high frequency detection range reaches up to 2000m. If you are interested in our products, please feel free to contact us.

Features

▪ High resolution and brightness display suitable for field operation

▪ Paperless data record, and datum could be store in perpetuity

▪ Supporting VGA display

▪ Window XP operation style

▪ Adjustable frequency

Specifications

Project

Data

Display Size

12 LCD

Resolution

1024768, 600cd/O

Operating Frequency

HF:100-750KHz(adjustable), LF: 3-50KHz(adjustable)

Maximum Transmitting Power

HF: 500W, LF: 600W

Depth Range

HF: 0.3~600m, LF:0.5~2000m

Accuracy of Sounding

10mm+0.1%h, resolution ratio: 1cm

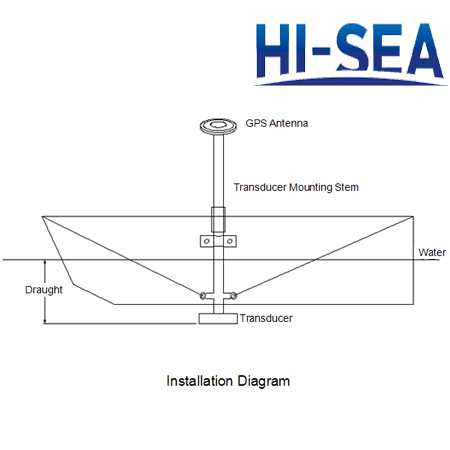

Draught

0.0~15m

Sound Velocity

1370~1700m/s, resolution ratio: 1m/s

CPU Frequency

1.6GHz

Memory&Storage

4G, CF card

Interface

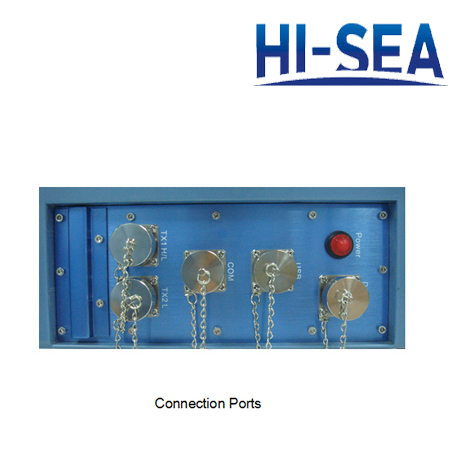

two RS-232 serial ports, three USB ports, one DC/AC power port, two transducer ports

Power

DC 12V, AC 220V, power consumption: 20W

Operation Temperature

-30~+60

Outline Dimension

440341164mm

Weight

9kg

Depth Finder or Sounder

Depth Finder or Sounder

Depth Finder or Sounder

Depth Finder or Sounder
