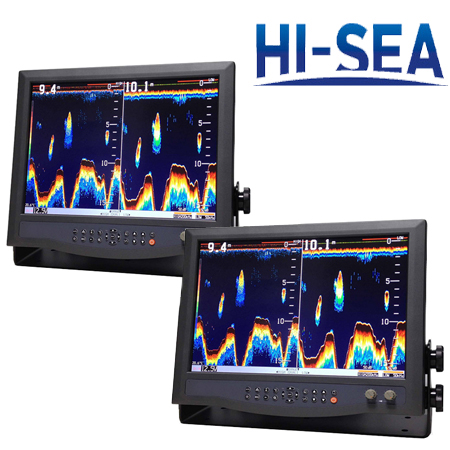

15-Inch HD Color Fish Finder

15-Inch HD Color Fish Finder

15-Inch HD Color Fish Finder is a kind of dual-frequency, high-power, high-definition fish finder. The design of dual frequency can prevent interference effectively, and help to acquire a better detection. The measuring range is up to 2000m. The imported high-power probe has the advantage of high sensitivity. This fish finder is easy to operate. It is a great tool for fishing. If you are interested in this product, please feel free to contact us.

Features

▪ Imported probe

▪ High definition

▪ 15’’ XGA bright-color LED

▪ Dual frequency

▪ Distinct signals of fish schools

Specifications

Project	Data
Display Size	15’’ XGA LED
Resolution	1024×768
Backlighting	bright-color LED
TX Frequency	dual frequency, 20KHz/28KHz/50KHz (selectable) and 200KHz
TX Power	1KW, 2KW, 3KW, 5KW
Range	3~2000m
Echo Color	16 colors( including 5 available background color)
Operation Mode	auto mode/ manual mode (selectable)
Location Interface	NMEA0183
Alarm	depth alarm, fish alarm
Input/Output Interface	RS422NMEA0183
Power Supply	DC 11~40V, 36W

15-Inch HD Color Fish Finder
