5-Inch Marine GPS Navigator

5-Inch Marine GPS Navigator

5-Inch Marine GPS Navigator is quite small. The display size is only 5 inches. Although this product is small, but its function quite complete. It equips with a low-consumption and high-performance core processor. It supports real-time voice broadcast, which makes navigation more accurate. Besides, It has wide range suitable voltage. If you want to know more about this product, please contact us.

Features

▪ 5’’ liquid crystal display

▪ Waterproof

▪ Intelligent voice broadcast

▪ A low-consumption and high-performance core processor

Specifications

Project	Data
Display Size	5’’
Resolution	480×272
Waterproof	IPX6
LCD Brightness	400cd/㎡
Weight	2.5 kg
Waypoints	200,000 points
Tracks	10,000 points
Routes	800lines
Updating Frequency	1 time/second
Data Interface	NMEA0183/RS422
Power Supply	12V-36V
Working Temperature	-15℃-+55℃
Dimension	20.3×13.3×7.83cm
Other Function	loading chart, SD card upgrade, expanding the char of memory space, supporting voice navigation and alarms

Parts list

▪ 5’’ Marine GPS Navigator

▪ GPS antenna

▪ 6 core data line

▪ Power line

▪ Installation fixed screw

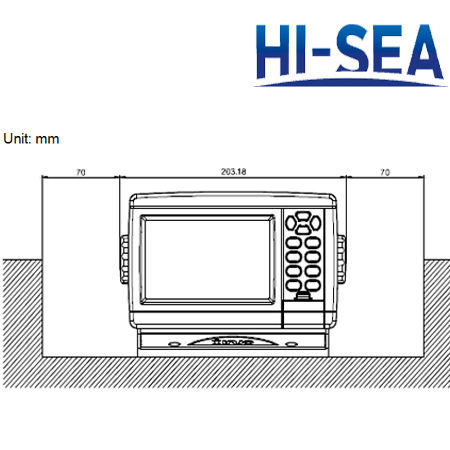

Pictures of Dimensional Drawing

5-Inch Marine GPS Navigator

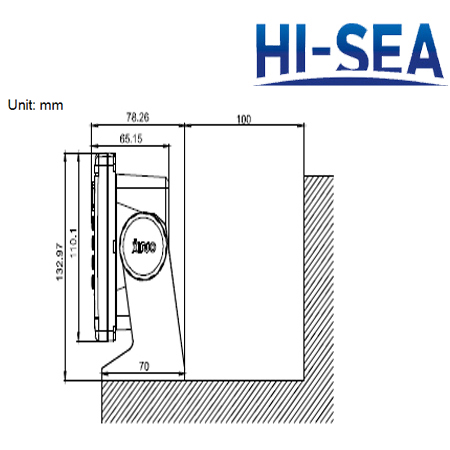

Dimensional Drawing

5-Inch Marine GPS Navigator

Dimensional Drawing
