Pallet Shuttle Racking

Description of Pallet Shuttle Racking

Pallet shuttle racking consists of racks,trolleys and forklifts.It is a kind of high-density storage system in order to improve the utilization of warehouse space.The work efficiency is high.It is a new choice for customers.The independent charging shuttle trolley is equipped.The shuttle trolley with wireless remote control bearing pallet goods can run on rails.FIFO (FIFO) and last-out (FILO) can be achieved.The space utilization is about 80%.Compared with other types of racking systems,shuttle racking system has a comparative advantage in the warehouse space utilization,goods access efficiency and rack investment cost.

Pallet shuttle racking is suitable for little and various goods,such as food,beverages,chemicals,tobacco and other large-volume single article industries.It is extremely popular in the freezer.It is ideal choice for the firms with limit storage space and and smaller warehouse.

Characteristics of Pallet Racking System:

Composed of shuttle racks,battery-powered shuttle cars and trucks;

Compared with drive-in racking,pallet shuttle racking system can design greater depth and intensity;

More reasonable and stable structure,anti-seismic safety performance is much higher than the drive-in racks;

Various truck types can be selected;

Wide range of load capacity,safe and reliable;

Without driving in,high efficiency ,high space utilization,saving space and labor costs.

Technical Parameters:

Rated load capacity

No-load speed

Full-load speed

Control way

Control range

Ambient temperature

1000kg ~ 1500kg

Max0.9m / s

Max0.8m / s

Wireless remote control


-25 íŠ -60 íŠ

(Note:It is for reference.Our pallet shuttle racking can be customized according to your special requirements.For any more information,please feel free to contact us directly.)

Pallet Shuttle Racking

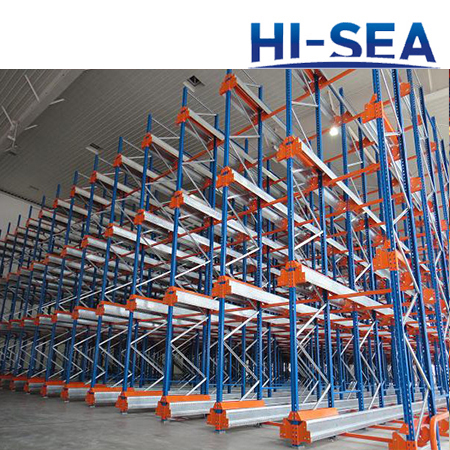

Picture of Pallet Shuttle Racking

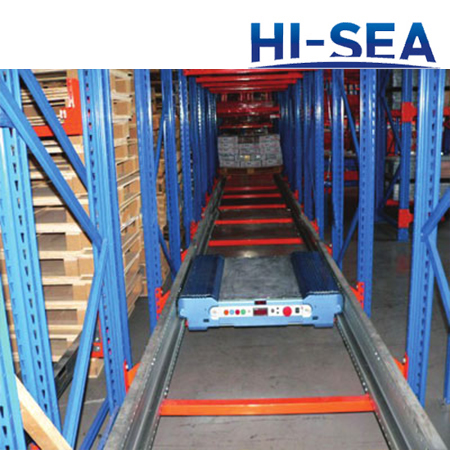

Pallet Shuttle Racking

Pallet Shuttle Racking(1)

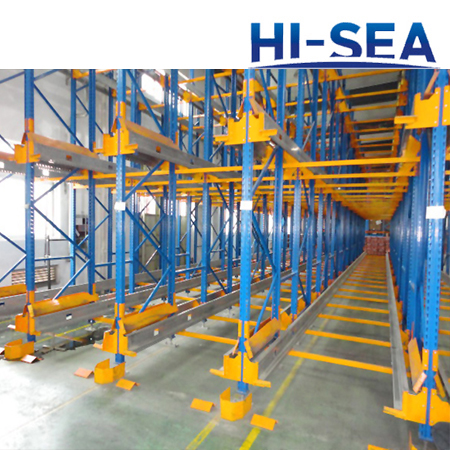

Pallet Shuttle Racking

Pallet Shuttle Racking(2)

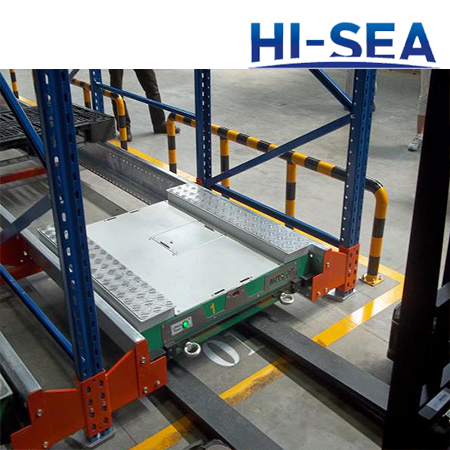

Pallet Shuttle Racking

Pallet Shuttle Racking(3)
