Heavy Duty Pallet Racking

Heavy Duty Pallet Racking

Heavy duty pallet racking is also called pallet racking.It is the most common storage system in different enterprises.It is fit for storing large quantities products and multiple varieties products.It has high storage capacity.The capacity of each layer can reach 5,000kg at most.It is easy to install and adjust.The height can be adjusted up and down within range of 50-70mm.

The heavy duty pallet racking is made of high quality cold-rolled steel plates by rolling.The upright can reach 10m with no joint seam in the middle.The beam is made of high quality square steel with large bearing power so that it isn¡¯t easy to distort.The fastener between beam and upright is inserted into column.It is convenient for installation and removal.The lock pin is available for preventing the forklift from lifting the beam during the actual operation.

The height of this rack is changeable.Any migration of this rack is available.FIFO inventory management can be realized. It has high flexibility,so it can be assembled into varieties of storage modes.Excellent stability,high space utilization,no bolts and simple installation are its features.

Our heavy duty pallet racking consists of uprights,beams,cross struts and self-locking bolts.It can effectively keep stability when the bolt looses.The beams is made of special cold-rolling P-type enclose beam.This structure is simple,reliable,lightweight.It has strong bearing power and low cost.Safety pin is available when the fastener is connected with upright,which can ensure the beam wouldn¡¯t fall off under impact of external force.

Heavy duty pallet racking is widely used in various fields of manufacturing, third-party logistics, distribution center, warehouse-style supermarkets, etc.The size of this racking can be customized according to clients¡¯ special requirements.For any more information,please feel free to contact us directly.best service will be available.

Features of Heavy Duty Pallet Racking:

Strong bearing power,make the best of space

Durable power coated finish,nice appearance,low cost,good stability,easy installation

Height of level can be adjusted by 75mm or 76.2mm.

The specifications of upright:

80*60*1.8(2.0),85*67*1.8(2.0),90*70*1.8(2.0),100*67*2.0£¨2.3£©,120*75*2.0£¨2.5£©mm
The specifications of beam:

80*50*1.5(1.8),100*50*1.5(1.8),120*50*1.5(1.8),140*50*1.5(1.8),160*50*1.5(1.8)mm

Heavy Duty Pallet Racking

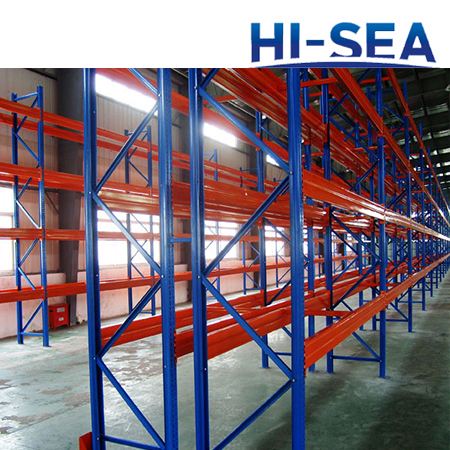

Picture of Heavy Duty Pallet Racking

Heavy Duty Pallet Racking

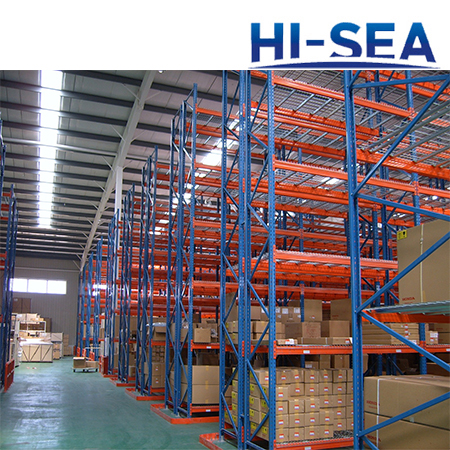

Photo of Heavy Duty Pallet Racking
