CNF(D) Marine Electric Heating Fan Heater

Structure

The CNF (D) electric heating series heater consists of an electric heater, an impeller, a collecting ring, a motor, and an electric control box. The electric heating tube of the electric heater is wound around the stainless steel tube by mechanical winding. The impeller adopts LF3 anti-rust aluminum; the casing and the electric control box are welded by ordinary steel plate or stainless steel plate. According to the needs of the user, the electric control box can be assembled with the heater body or separately. The electric heating heater has over-temperature protection, overload protection, temperature control, interlock control of fan and electric heating heater, and hierarchical control electric heating function.

Drawing

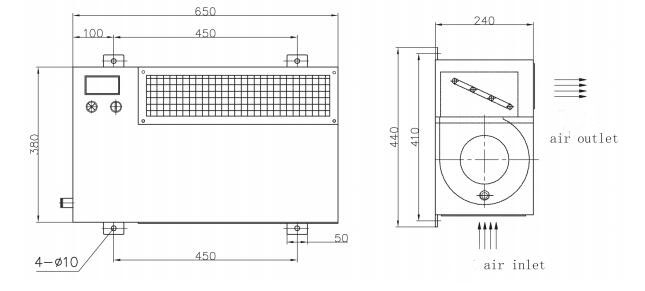

Small power wall mounted heater size and parameters

CNF(D) Marine Electric Heating Fan Heater

MODEL	CNF（D）-1.0-3.0
Heating capacity （kw）	1.0-3.0
Flow rate（m3/h）	500
Blower power	40
Rating	220 V

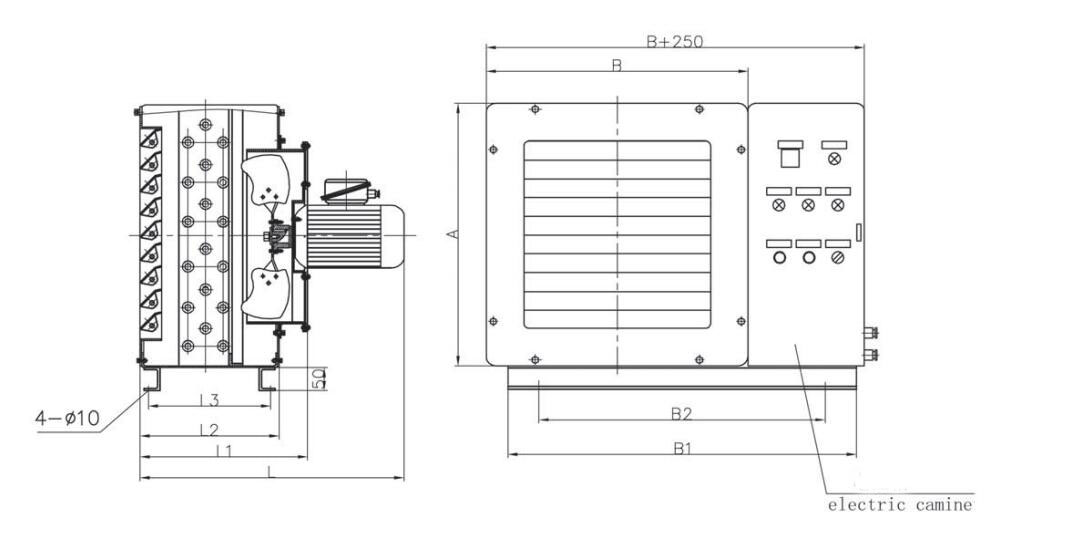

High power seat type or wall mounted heater type size and parameters

CNF(D) Marine Electric Heating Fan Heater

Model	Heating capacity（KW )	Flow rate m3/h	Motor										Weight（kg）
Model	Heating capacity（KW )	Flow rate m3/h	Power KW	Model	A	B	B1	B2	L	L1	L2	L3	Weight（kg）
CNF(D)-3～6	3～6	500～1000	0.25	Y711-4-H	420	420	600	500	500	330	250	200	48
CNF(D)-7～14	7～14	1200～ 2000	0.25	Y711-4-H	550	550	700	600	500	380	300	250	62
CNF(D)-15～22	15～22	2500～ 3500	0.37	Y712-4-H	650	650	800	700	500	380	300	250	82
CNF(D)-22～30	22～30	3500～ 5000	0.75	Y802-4-H	750	750	900	800	600	380	300	250	98
