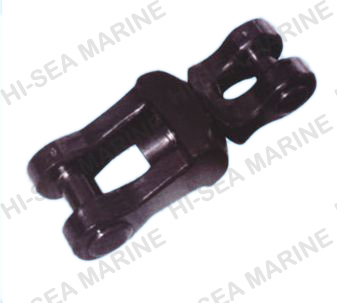

Anchor swivel shackle type A is one type of ship’s swivel shackle that has the two working functions of swivel and shackle. It joins the anchor and Grade 2 or Grade 3 anchor chains. Type A swivel shackle can be directly connected with the anchor shank but it is not applicable to the connection with anchor shackle. Swivel shackle is made from AM2 or AM3 anchor chain steel. It is of high quality and has stable performance.

We supply all types of marine shackles and other anchor chain accessories. For more detail information, please feel free to contact us by sending an e-mail or giving us a phone call.

Specification

1. Model Type: Swivel Shackle Type A = A.SW.S (a)

2. Material: Steel (Forged Steel or Cast Steel)

3. Grade: Grade 2 & Grade 3

4. Application: Anchor Chains Connection

5. Nominal Diameter: 22mm to 117mm

6. Weight: 17.5kg to 1830kg

7. Surface: Black Painted, Hot Dip Galvanized

8. Certificate: CCS,ABS, BV, DNV, KR, NK,RINA etc.

9. Standard or Customized Products

Anchor Swivel Shackle Type A

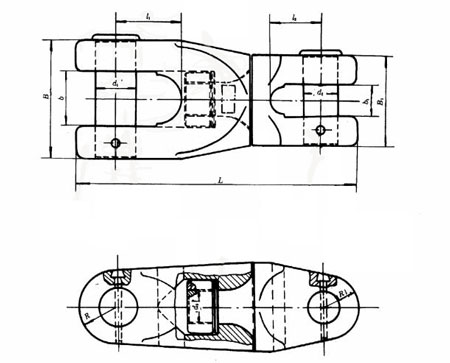

Drawing of Anchor Swivel Shackle A

Applicable Anchor Chain Diameter d	Tyoe A AM2												Weight(kg)
Applicable Anchor Chain Diameter d	L	B	B1	b	b1	R	R1	d3	d1	d2	l1	l2	Weight(kg)
22,24	307	138	94	75	34	48	37.5	M36	58	31	70	61.5	17.5
26,28	372	157	116	82	39	58	47	M42	62	36	87	73	37.6
30,32	423	180	124	84	45	62	53	M52	68	42	101	73	91.0
34,36,38	482	213	148	96	53	74	58	M56	76	49	115	94	107
40,42	540	235	164	102	59	82	66	M64	85	55	131	106	115
44,46,48	615	269	196	115	67	98	75	M76	90	62	145	118	139
50,52	712	290	202	125	73	109	88	M90	96	68	168	135	264
54,56	712	314	218	138	78	109	88	M90	102	73	168	135	270
58,60,62	787	348	252	149	88	126	100	M100	106	82	185	152	294
64,66,68	868	380	265	154	95	136	106	M110	116	88	200	150	403
70,73,76	965	426	304	168	106	152	120	M120	125	100	225	184	464
78,81	1042	454	328	172	113	164	130	M130	132	105	240	183	749
84,87	1118	487	352	180	122	176	140	M140	138	113	260	214	931
90,92,95	1206	532	380	200	133	190	152	M150	148	124	280	231	1191
100,102	1308	571	412	210	143	206	164	M165	156	133	300	253	1464
105,107	1398	600	420	220	150	210	176	M175	162	140	335	269	1466
111,114,117	1498	660	460	225	165	230	188	M190	168	154	351	315	1830
