YWC-2.50 Oil Water Separating Treater

This Oil Water Separating Treater, which is suit for 50KDWT to 100KDWT vessel, the rate capacity is 2.5m3/hr.

Explosion proof type is also available, used for oil platform.

Produce standard: IMO.MEPC.107 (49)

1. Oil Water Separating Treater Principle:

The plant adopts the combination of 1ststage, cone plate gravity and coalesce separation; 2ndstage, fiber filter and 3rdstage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).

2. Oil Water Separating Treater Technical Parameters:

Model		YWC-2.50
Technical Specifications		2.5
Rated capacity(m3/h)		2.5
Oil content of the discharged water		≤15ppm
Power of the electric heater(kw)		6kw
Electrical System		380V/50Hz/3φ, 415V/50Hz/3φ, 440V/60Hz/3φ, 480V/60HZ/3φ
Power of the electric motor		1.5kw
Suction head		≤6m-H2O
Pressure of the discharged water		5-10m-H2O
Outline Dimension(LWH)(mm)		190011201900
Base		8#
Weight (kg)	Dry Weight	1500
	Wet Weight	2800

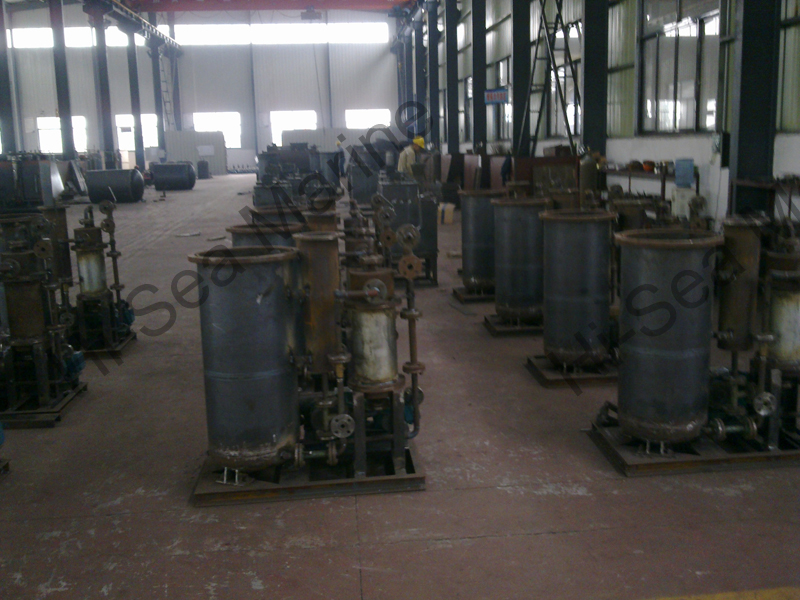

3. Our workshop and storage:

YWC-2.50 Oil Water Separating Treater
