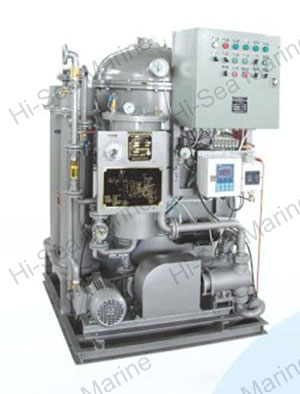

YWC-1.50 Automatic Oily Water Separator

[Search Related Products]

YWC-1.50 Automatic Oily Water Separator

1. Automatic Oily Water Separator Application:

This separator can be used to treat oily bilge water in order to make it reach the requirements of IMO.MEPC.107 (49) resolution, which is also called 15ppm bilge separator.It contains type approved 15ppm bilge water separator ,15ppm bilge alarm and Automatic shut down Device.

2. Automatic Oily Water Separator Principle:

The separator adopts the combination of 1st stage, cone plate gravity and coalesce separation; 2nd stage, fiber filter and 3rd stage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).

YWC-1.50 Automatic Oily Water Separator

* As shown inthe enclosed drawing, thebilge water comes into the 1ststage coalescer separator because of the suction of theFeedingpump, that is in a vacuum negative pressure, and it effectively prevents the problem that the bilge water is difficult to be separated because of the emulsion caused by feed pump under pressure. The liquid coming out ofFeedingpump is adsorbed and filtered by the 2ndstage fiber filter, and then goes into the 3rdstage membraneto reach the discharge standard.

* There is a 15ppm bilge alarm in the ship cabin to measure the oil content of effluent. If it finds that the oil content of effluent is in an excess of limit, the oil content meter can make order to switch turn it into the 3rdstage, membrane treatment process.

* The oil content meter will give an alarm if finds the oil content of effluent is above limit, and the unqualified water pneumaticthree-wayvalveVS6is opened automatically, so that the unqualified water is return to bilge, not to the overboard.

3. Automatic Oily Water Separator Main Parameters:

Model

YWC-1.5

Technical Specifications

1.5

Rated capacity(m3/h)

1.5

Oil content of the discharged water

¡Ü15ppm

Power of the electric heater(kw)

6kw

Electrical System

380V/50Hz,/¦Õ, 415V/50Hz/3¦Õ, 440V/60Hz/3¦Õ, 480V/60HZ/3¦Õ, etc.

Power of the electric motor

1.1kw

Suction head

¡Ü6m-H2O

Pressure of the discharged water

5-10m-H2O

Outline Dimension(L*W*H)(mm)

1100*1130*1650

Base

6#

Weight (kg)

Dry Weight

1060

Wet Weight

1650

5. Automatic Oily Water Separator Certificates Supply

YWC-1.50 Automatic Oily Water Separator

YWC-1.50 Automatic Oily Water Separator
