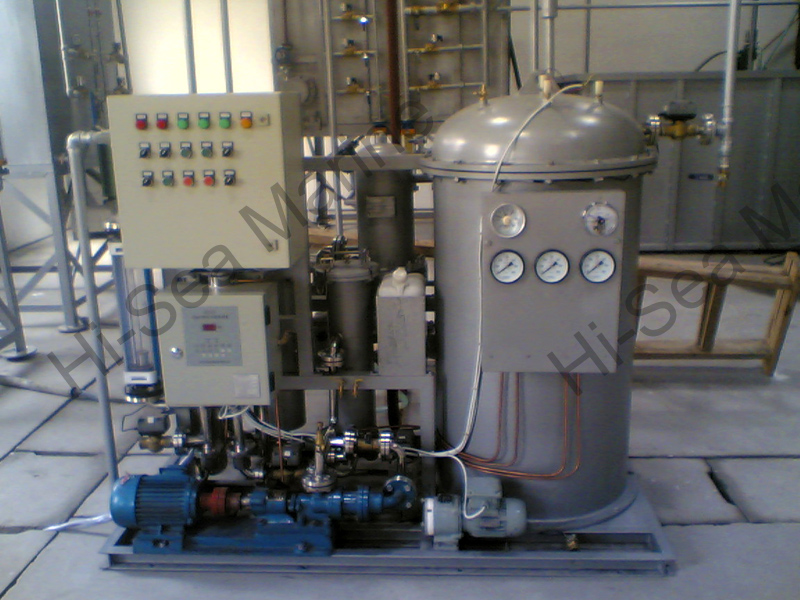

YWC-0.50 Oily Water Separator

1. Oily Water Separator Specification:

Type: YWC-0.50
Rated capacity: 0.50 m3/h
Effluent oil contentí▄15PPm
Electric power:415V/ 50Hz /3ŽÁ (Optional)
Motor power:0.55 kw
Method of heating: Electric heating
Outline Dimension: Lí┴Bí┴H=1100í┴690í┴1460 mm
Discharge pressure: 0.05-0.1Mpa
Protection grade: Electric Motor IP 44
Electric control box IP 44
Electric cable: For marine use
Outer joint flange standard: GIS standard
Surface color of the equipment: dark grey
Nameplate :Stainless steel, white characters on black background
Applicable Vessel: 1,000-5,000DWT

2. A whole set ofYWC-0.50Type oily water separator, and each contains the following parts:

No.

Name

Model

Quantity

1

1st Stage Coalescer

322DF-1-01

1 set

2

2ndStage Filter

322DF-1-02

2sets

3

3rdStage Membrane

322DF-1-03

4sets

4

Electric Box

322DF-1-00SY

1 set

5

15ppm bilge alarm

1 set

6

Marine motor

1 set

7

pump

1 set

8

Pneumatic Valve

7 sets

9

Flow meter

1 set

10

Dosing Pump

1 set

11

Safety valve

1 set

12

Pressure Meter

3 sets

13

Thermometer

1 set

14

Pressure Meter

1 set

15

Relative Pipe System

1 set

16

Trouble alarm delay

1 set

3. Oily Water Separator Spare Parts:

No.

Name

Model

Quantity

Note

1

Spare parts of the pump

1 set

2

The 2ndfilter core

322DF-1-02

1 sets

3

O-Ring of the 1stcoalescer

DFY-1001

1 piece

4

O-Ring of the 2ndfilter

DFY-1002

1 piece

5

O-Ring of the flange

DFY-1003

8 piece

6

The seawater filter

1 piece

YWC-0.50 Oily Water Separator
