Quick Open & Closing Watertight Steel Door

Quick Open & Closing Watertight Steel Door

It is used for engine room and other compartments with max. water pressure of 0.06Mpa. Quick open & closing steel watertight door with single handle is used for upper structure of ship and constructions on land, drilling platforms and basements. It can be opened and closed quickly and lightly, which meets the requirement of International Load Line Convention 1966. It can withstand the max. water pressure of 0.06Mpa.

Features

▪ Quick open and closed

▪ To withstand the max. Water pressure 0.06Mpa

▪ Long service life

▪ Excellent waterproof performance

Quick Open & Closing Watertight Steel Door

Standard

Size of Doorway

HกมWกมR

Size of Door

H1กมW1กมR1

Hole Size of Casing Wall

H2กมW2กมR2

Thickness of Doorleaf

Weight

Kg

1050

1000กม500กม100

1049กม549กม124.5

1100กม600กม150

6

92.3

1050กม551กม125.5

8

103.8

1260

1200กม600กม100

1249กม649กม124.5

1300กม700กม150

6

113.4

1251กม651กม125.5

8

129.0

1460

1400กม600กม100

1449กม649กม124.5

1500กม700กม150

6

128.6

1451กม651กม125.5

8

146.7

1475

1400กม750กม100

1449กม799กม124.5

1500กม850กม150

6

144.4

1451กม801กม125.5

8

165.9

1490

1400กม900กม100

1449กม949กม124.5

1500กม1000กม150

6

160.1

1451กม951กม125.5

8

185.2

1660

1600กม600กม100

1649กม649กม124.5

1700กม700กม150

6

136.9

1651กม651กม125.5

8

154.8

1675

1600กม750กม100

1649กม799กม124.5

1700กม850กม150

6

161.4

1651กม801กม125.5

8

185.7

1690

1600กม900กม100

1649กม949กม124.5

1700กม1000กม150

6

178.0

1651กม951กม125.5

8

206.4

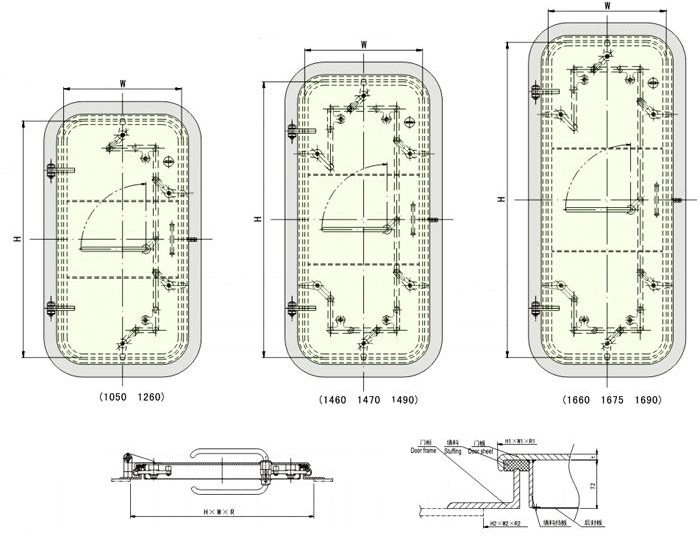

The Drawing and Sizes of Quick Open & Closing Watertight Steel Door( Type 1)

Quick Open & Closing Watertight Steel Door

Quick Open & Closing Watertight Steel Door

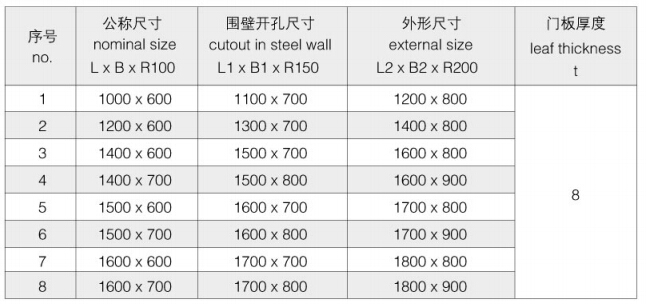

The Drawing and Sizes of Quick Open & Closing Watertight Steel Door( Type 2)

Quick Open & Closing Watertight Steel Door

Quick Open & Closing Watertight Steel Door
