Hydraulic Watertight Sliding Door

Hydraulic Sliding Watertight Door

Hydraulic Sliding Watertight Door is suitable for the position which is below waterline. It is usually used between engine room and steering gear room, or between engine room and boiler room, or main engine room and auxiliary machinery, etc. This door meets the requirement of GB10804-89. This product can be handled manually at both side of engine room. Besides, hydraulic pipes also could be handled manually . The manual control handle is laid on the deck. The size of door can be customized. Excepting this door, we also provide hydraulic hinged watertight door.

Features

To increase door frame stiffness

Less force needed to close the door

Easier installation

Rustproof sealing surface

Short opening time

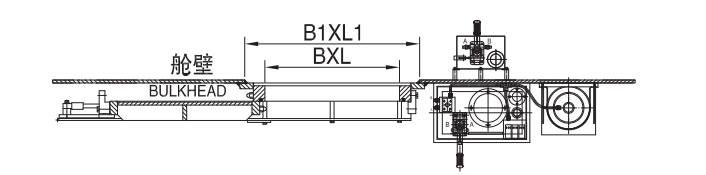

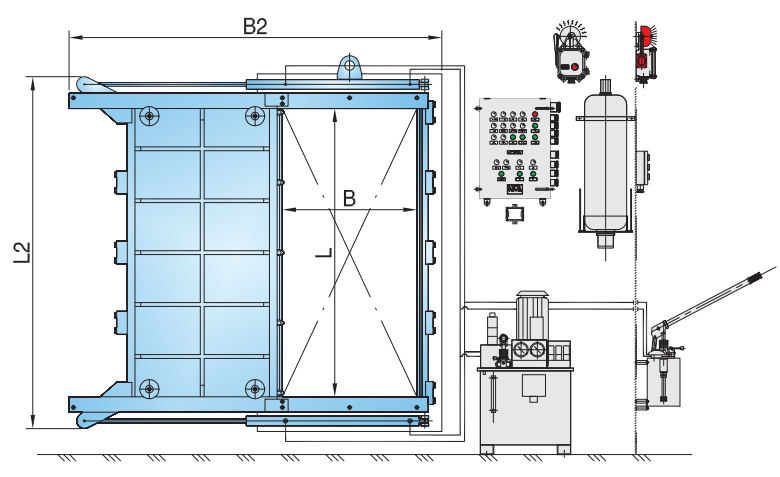

Drawing of Hydraulic Sliding Watertight Door

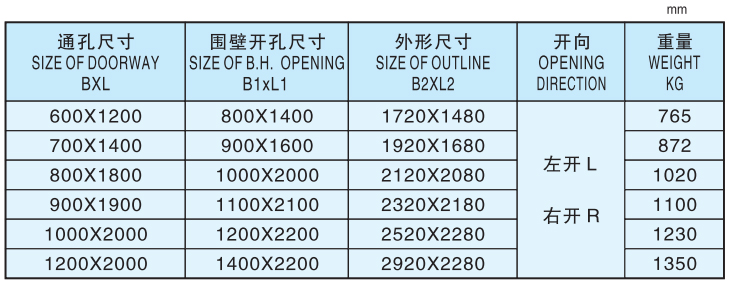

Basic Parameters of Hydraulic Sliding Watertight Door

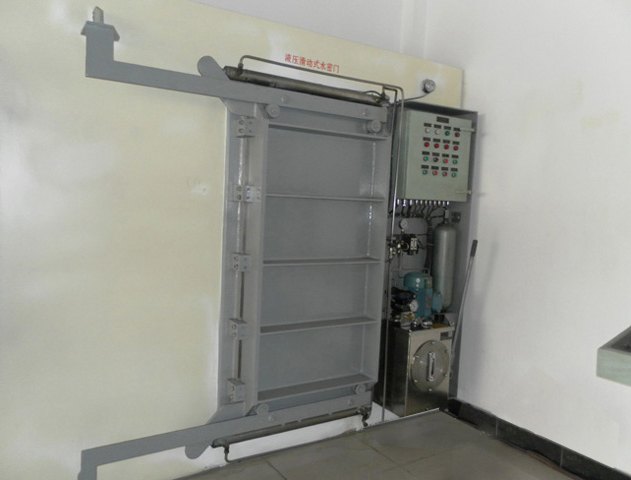

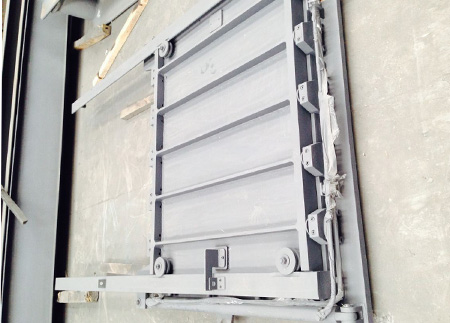

Pictures of Hydraulic Sliding Watertight Door
