Marine Weathertight Single-Leaf Steel Door

[Search Related Products]
Marine Weathertight Single-Leaf Steel Door

Marine Weathertight Single-Leaf Steel Door

Marine Weathertight Single-Leaf Steel Door meets the standard GB/T 3477-2008. Compared with the standard GB/T 3477-1996, this standard has following features: first, clear size of opening 1000กม500mm is canceled; second, 12 new clear sizes are added; third, the place of stiffener is adjusted; last, the flat steel door frame is canceled. Marine weathertight single-leaf steel door is installed on the upper structure above deck or deck house. There are 8 available types: AF, AY, BF, BY, CF, CY, DF, DY. You can chose our products according to you requirements. This door can withstand adverse weather conditions which provides you a safer voyage.

Features of Marine Weathertight Single-Leaf Steel Doors

▪ used for the doorway of upper structure above deck or deck house

▪ To meet ISO 6042-1980, GB/T 3477-2008

▪ Specific design of doors for various installation locations

Marine Weathertight Single-Leaf Steel Door

Product Drawing of Type AF, AY

Marine Weathertight Single-Leaf Steel Door

Product Size of Type AF, AY

Comment:

The clear size of class A square-corner marine weathertight single-leaf steel door is 1600*600, its thickness is 8mm and its stiffener is (65*9) mm.

AF1600กม600-9-65กม9-5.1 GB/T 3477-2008


Marine Weathertight Single-Leaf Steel Door

Product Drawing of Type BF,CF and Type BY,CY

Marine Weathertight Single-Leaf Steel Door

Product Size of Type BF,CF and Type BY,CY

Comment:

The clear size of class B round-corner marine weathertight single-leaf steel door is 1600*600, its thickness is 8mm and its stiffener is (65*9) mm.

BF1600กม600-9-65กม9-5.1 GB/T 3477-2008


Marine Weathertight Single-Leaf Steel Door

Product Drawing of Type DF,DY

Marine Weathertight Single-Leaf Steel Door

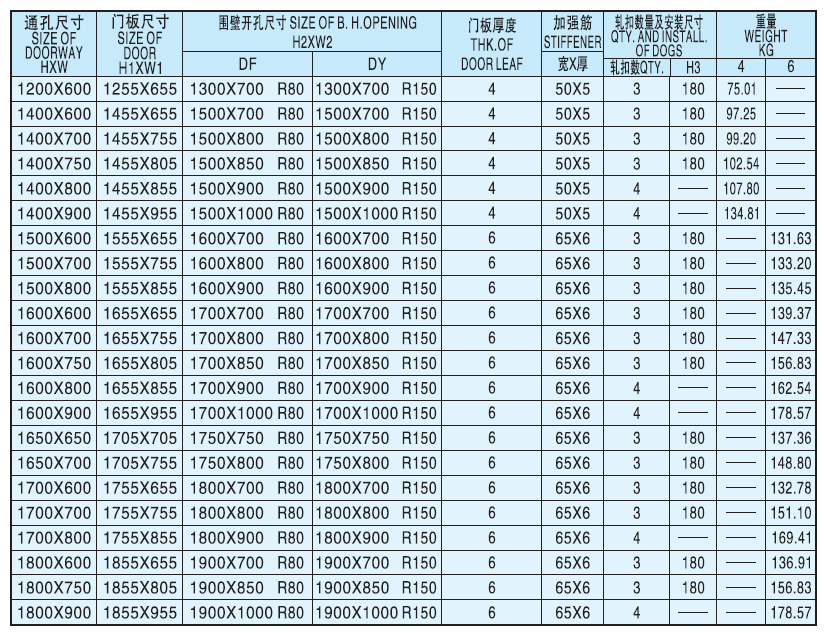

Product Size of Type DF,DY

Comment:

The clear size of Class D square-corner marine weathertight single-leaf steel door is 1400กม750, its thickness is 4mm and its stiffener is (50กม5)mm.

DF1400กม750-4-50กม5-5.1 GB/T 3477-2008


Marine Weathertight Single-Leaf Steel Door

Marine Weathertight Single-Leaf Steel Door

Marine Weathertight Single-Leaf Steel Door

Marine Weathertight Single-Leaf Steel Doors
