A60 Hydraulic Sliding Watertight Door

[Search Related Products]
A60 Hydraulic Sliding Watertight Door

A60 Hydraulic Sliding Watertight Door

It is watertight door for bulkhead below waterline, which is usually used between engine room and boiler room, or between between engine room and steering gear room, etc. It pass fire test held by Shanghai Far East Fire Testing Center. It meets the regulations for the classification and construction of sea-going steel ships in 1987. This door can be operated manually on both sides of the engine room. Besides, it has three directional operation of hydraulic pipes. This door has functions of water tightness and fire protection.

Features

▪ To apply to watertight gateways below waterline

▪ To be watertight and fireproof

▪ Manual operation is available

▪ Opening direction: left opening

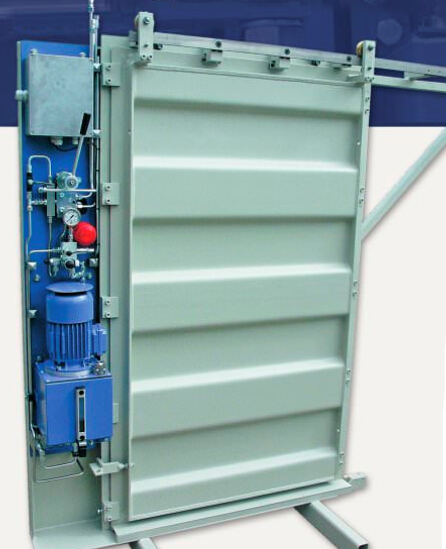

A60 Hydraulic Sliding Watertight Door

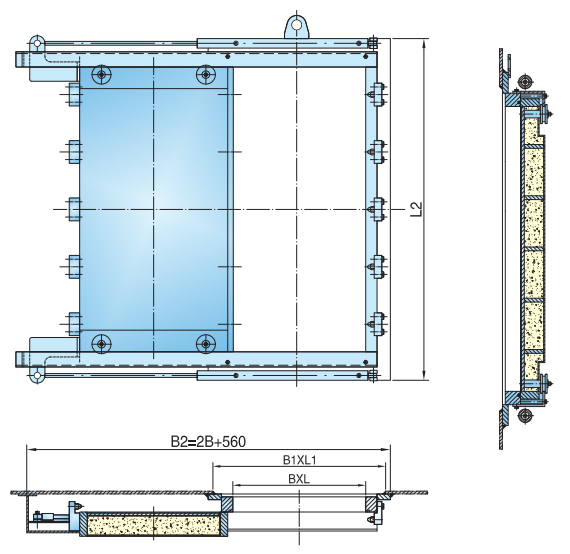

Drawing of A60 Hydraulic Sliding Watertight Door

A60 Hydraulic Sliding Watertight Door

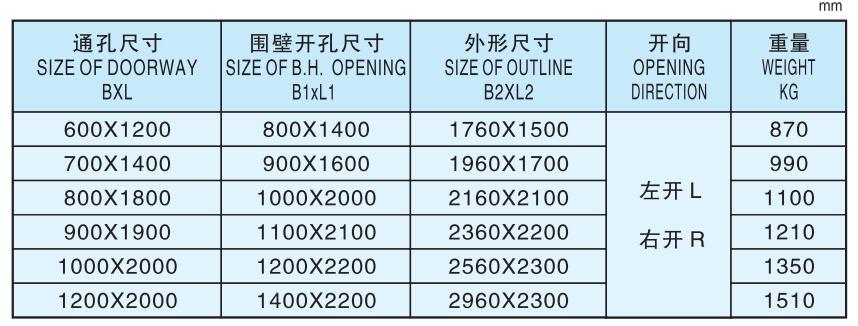

Parameters of A60 Hydraulic Sliding Watertight Door

A60 Hydraulic Sliding Watertight Door

A60 Hydraulic Sliding Watertight Door
