Flat Rack Container

Flat Rack Container

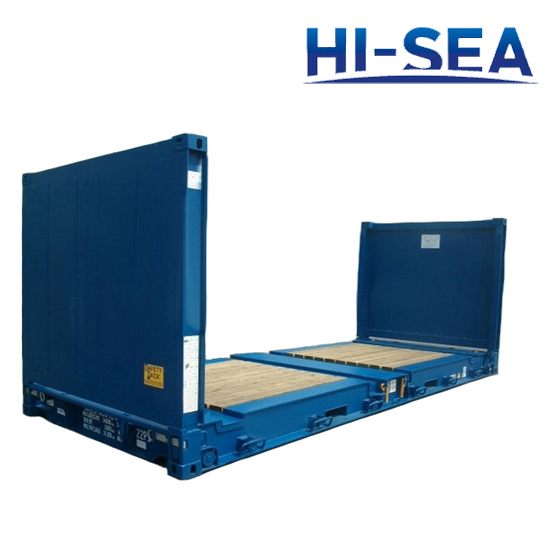

Flat rack container has no roof and two sides. It has only two side walls that can be fixed or folded. The loading and unloading operation is from the side of container. In order to ensure the safety of goods, there are a lot of container lashing ring installed in the detachable framework longeron, corner and floor. The high strengh steel make it can be used repeatedly.

Product Details:

1. Type: Flat Rack Container

2. Material: Carbon steel, plywood

3. External Dimension: 6058*2438*2591mm/ 12192*2438*2591mm

4. Internal Dimension: 5638*2194*2233mm/ 11752*2374*1959mm

5. Maximum gross weight: 30000KG/ 45000KG

6. Tare Weight: 2750KG/ 49000KG

7. Maximum payload: 20900KG/ 40100KG

8. Allowing Stacking Weight: 192000KG

9. Finish: Painted

10. Color: as your requirement

11. Certificate: CCS, BV, GL, ABS

Specification: HSFR

Plat Rack Container 20ft 40ft
Ext.Dimension(L*W*H) 6058*2438*2591mm 12192*2438*2591mm
Maximun Gross Weight 34000 KG 45000KG
Tate Weight 2750 KG 4900KG
Maximum Payload 20900 KG 40100KG

Flat Rack Container

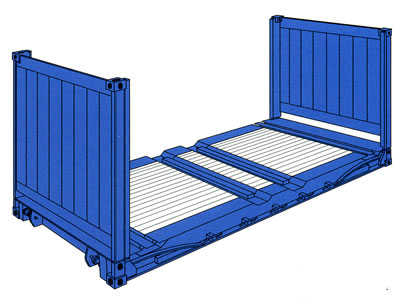

Sketch of flat rack container

Flat Rack Container

Flat Rack Container
