Wastewater Treatment Equipment

Wastewater Treatment Equipment:

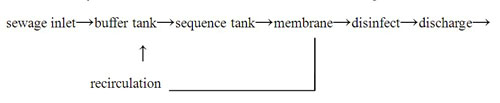

The equipment adopts the principle of sequence-membrane to treat organic pollutant, the treatment procedures of the equipment are as following:

Wastewater Treatment Equipment

Sewage first enters into the buffer tank to adopt the biochemical treatment, meantime the tank can contain the sewage 3 times peak load. When the liquid reaches the middle-level, the cutting pump is started and the sewage is transferred to sequence tank with soft stuffing, and then contact oxidizing, biological treatment the sewage. the discharge pump is started and transferred the treated sewage into membrane assembly. The permeated pure water should be disinfected by UV device, then discharged overboard. According to the regulation of IMO, the regulated sea area should adopt the sequence or membrane treatment.

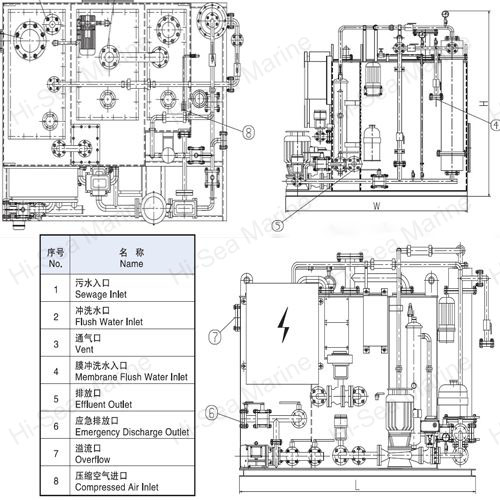

Structure:

Wastewater Treatment Equipment

System Principle:

Wastewater Treatment Equipment

Main Technical Parameters:

Type

WCMBR-

10(U)

20(U)

30(U)

40(U)

50(U)

60(U)

80(U)

100(U)

Rated Persons

10

20

30

40

50

60

80

100

Hydraulic Load (m3/d)

0.84

1.54

2.31

3.08

3.78

4.48

6.02

7.70

Organic Load (kg/d)

0.42

0.77

1.15

1.54

1.89

2.24

3.01

3.85

Voltage

AC 380V/50Hz, AC 415V/50Hz, AC 440/60Hz

Power (kw)

5

5

5

5

5

5

6

10

Size (mm)

1750

*

1400

*

1600

2000

*

1400

*1

600

2000

*

1600

*

1700

2100

*

1600

*

1750

2100

*

1900

*

1750

2450

*

1900

*

1850

2600

*

2100

*

2035

2900

*

2100

*

2050

Dry Weight (kg)

1200

1250

1420

1800

2000

2100

2550

3800

Wet Weight (kg)

2000

2600

3370

4000

5100

5700

7500

9540

Effluent Quality

BOD5í█25mg/L, CODí█125mg/L, TSSí█35mg/L, coliformí█100/100ml, PH6íź8.5, Cl2í█0.5mg/L
