Triangular Strand Wire Rope

Triangular Steel Wire Rope

Triangular steel wire rope is one kind of most common wire rope, which is widely used in industry. It has excellent mechanical properties, high coating quality and surface quality. This product can be used for hangers, hanging, tethered, fixed objects, and communication cables, overhead earth wire, steel strand wire.

Product Details:

1. Item: Triangular steel wire rope

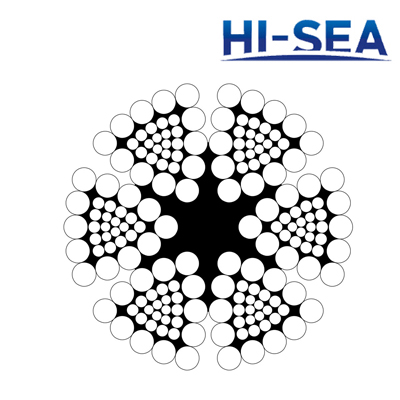

2. Construction: 6V*37S+FC, 6V*37S+IWR

3. Type: steel wire rope

4. Tensile Strength: 1570, 1670, 1770, 1870, 1960 Mpa.

5. Finish: Galvanized

6. Material: Steel

7. Usage: Pulling, lifting and transportion

Safety Notice:

1. In operation, the wire rope should be in steady speed

2. Never overload, and never shock load a wire rope

3. Wire rope should be inspected regularly, including abrasion of wire rope, condition of broken wire and metal parts

4. It is important to clean and replace lubricant to the wire rope periodically.

Specification:

Nominal Diameter(mm)	Tensile Strength of Rope(Mpa)										Approx.Weight(kg/100m)
	1570		1670		1770		1870		1960
	Mininum Breaking Load(KN)
	FC	IWR	FC	IWR	FC	IWR	FC	IWR	FC	IWR	FC	IWR
18	189	200	201	213	213	226	225	238	236	250	135	143
20	233	247	248	263	263	279	277	294	291	309	167	177
22	282	299	300	318	318	337	336	356	352	373	202	214
24	335	356	357	379	379	401	399	424	419	444	240	255
26	394	418	419	444	444	471	469	497	491	521	282	299
28	456	484	486	515	515	546	544	577	570	605	327	346
30	524	556	557	591	591	627	624	662	654	694	375	398
32	596	633	634	673	673	713	710	753	744	790	427	452
34	673	714	716	760	760	805	802	851	840	892	482	511
36	755	801	803	852	852	903	899	954	942	1000	541	573
38	841	892	894	949	949	1010	1000	1060	1050	1110	602	638
40	931	988	991	1050	1050	1110	1110	1180	1160	1230	667	707
42	1030	1090	1090	1160	1160	1230	1220	1300	1280	1360	736	779
44	1130	1200	1200	1270	1270	1350	1340	1420	1410	1490	808	855
46	1230	1310	1310	1390	1390	1470	1470	1560	1540	1630	883	935
48	1340	1420	1430	1510	1510	1600	1600	1700	1670	1780	961	1020
50	1460	1540	1550	1640	1640	1740	1730	1840	1820	1930	1040	1100
52	1570	1670	1670	1770	1770	1880	1870	1990	1970	2090	1130	1190
54	1700	1800	1810	1910	1910	2030	2020	2150	2120	2250	1220	1290
56	1830	1940	1940	2060	2060	2180	2170	2310	2280	2420	1310	1390
58	1960	2080	2080	2210	2210	2340	2330	2480	2440	2590	1400	1490
60	2100	2220	2230	2370	2360	2510	2500	2650	2620	2780	1500	1590
