Point Line Contacted Steel Wire Rope

Point Line Contacted Steel Wire Rope

Point line contacted steel wire rope is made from high quality carbon steel, and it can achieve high strength after repeated cold and heat treatment. It can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on. The service life of wire rope has a great relation with the use mathod, so it should be used according to the rules.

Product Details:

1. Item: Point Line contacted steel wire rope

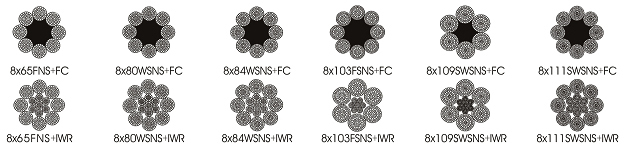

2. Construction: 8*65FNS, 8*80WSNS, 8*84WSNS, 8*103FSNS, 8*109WSNS, 8*111SWSNS

3. Type: steel wire rope

4. Tensile Strength: 1570, 1670, 1770, 1870, 1960 Mpa.

5. Finish: Galvanized or ungalvanized

6. Material: Steel

7. Usage: Pulling, lifting and transportion

Safety Notice:

1. In operation, the wire rope should be in steady speed

2. Never overload, and never shock load a wire rope

3. Wire rope should be inspected regularly, including abrasion of wire rope, condition of broken wire and metal parts

4. It is important to clean and replace lubricant to the wire rope periodically.

Specification:

Nominal Diameter (mm)	Approx.Weight (kg/100m)		Nominal Tensile Strength of Rope (Mpa)
			1570		1670		1770		1870		1960
			Mininum Breaking Load of Rope (KN)
	FC	IWR	FC	IWS	FC	IWS	FC	IWS	FC	IWS	FC	IWS
60	1330	1590	1530	1900	1620	2020	1720	2140	1820	2260	1910	2370
62	1420	1700	1630	2030	1730	2160	1840	2290	1940	2420	2030	2530
64	1520	1810	1740	2160	1850	2300	1960	2440	2070	2570	2170	2700
66	1610	1930	1850	2300	1960	2440	2080	2590	2200	2740	2310	2870
68	1710	2050	1960	2440	2080	2590	2210	2750	2330	2910	2450	3050
70	1810	2170	2080	2580	2210	2750	2340	2910	2470	3080	2590	3230
72	1920	2300	2200	2730	2340	2910	2480	3080	2620	3260	2740	3410
74	2030	2430	2320	2890	2470	3070	2620	3260	2760	3400	2900	3610
76	2140	2560	2450	3050	2600	3240	2760	3440	2920	3630	3060	3800
78	2250	2700	2580	3210	2740	3410	2910	3620	3070	3820	3220	4010
80	2370	2840	2710	3380	2390	3590	3060	3810	3230	4020	3390	4210
82	2490	2980	2850	3550	3030	3770	3210	4000	3390	4220	3560	4430
84	2610	3130	2990	3720	3180	3960	3370	4200	3560	4430	3730	4650
86	2740	3280	3140	3900	3330	4150	3530	4400	3730	4650	3910	4870
88	2870	3430	3280	4090	3490	4350	3700	4610	3910	4870	4100	5100
90	3000	3590	3430	4270	3650	4550	3870	4820	4090	5090	4290	5330
100	3700	4430	4240	5280	4510	5610	4780	5950	5050	6280	5290	6590
110	4480	5360	5130	6380	5460	6790	5780	7200	6110	7600	6400	7970
120	5330	6380	6100	7600	6490	8080	6880	8560	7270	9050	7620	9480
130	6250	7490	7160	8920	7620	9480	8080	10100	8530	10600	8940	11100
140	7250	8680	8310	10300	8840	11000	9370	11700	9900	12300	10400	12900
150	8330	9970	9540	11900	10100	12600	10800	13400	11400	14100	11900	14800
160	9470	11300	10900	13500	11500	14400	12200	15200	12900	16100	13500	16900
170	10700	12800	12300	15200	13000	16200	13800	17200	14600	18200	15300	19000
180	12000	14400	13700	17100	14600	18200	15500	19300	16400	20400	17100	21300
200	14800	17700	17000	21100	18000	22400	19100	23800	20200	25100	21200	26300

Point Line Contacted Steel Wire Rope

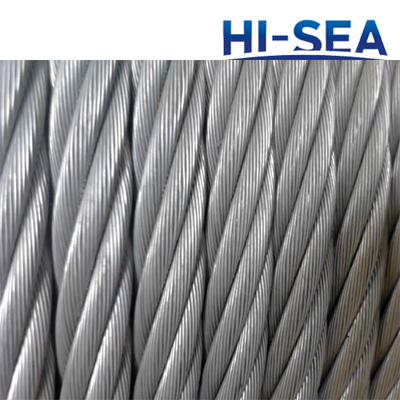

Galvanized Point Line Contacted Steel Wire Rope
