No-rotating Steel Wire Rope with Many Layers

No-rotating steel wire rope with many layers will limit the roration of outer cord, and this will decrease the rotation angle of bearing object in the air. The diameter of strand in each layer can be same of different, and the thicker wire should be the outer to increase the resistance of wire rope.

Product Details:

1. Item: No-rotating steel wire rope with many layers

2. Construction: 17*7, 18*7, 18*19

3. Type: steel wire rope

4. Tensile Strength: 1570, 1670, 1770, 1870, 1960 Mpa.

5. Finish: Galvanized

6. Material: Steel

7. Usage: Pulling, lifting and transportion

Safety Notice:

1. In operation, the wire rope should be in steady speed

2. Never overload, and never shock load a wire rope

3. Wire rope should be inspected regularly, including abrasion of wire rope, condition of broken wire and metal parts

4. It is important to clean and replace lubricant to the wire rope periodically.

Specification:

Nominal Diameter(mm)	Tensile Strength of Rope(Mpa)										Approx.Weight(kg/100m)
	1570		1670		1770		1870		1960
	Mininum Breaking Load(KN)
	FC	IWR	FC	IWR	FC	IWR	FC	IWR	FC	IWR	FC	IWR
6	17.5	18.5	18.6	19.7	19.8	20.9	20.9	22.1	21.9	23.1	14	15.5
8	31.1	33	33.1	35.1	35.1	37.2	37.1	39.3	38.9	41.1	25	27.5
10	48.7	51.5	51.8	54.8	54.9	58.1	58	61.3	60.8	64.3	39	43
12	70.1	74.2	74.5	78.9	79	83.6	83.5	88.3	87.5	92.6	56.2	61.9
14	95.4	101	101	107	108	114	114	120	119	126	76.4	84.3
16	125	132	133	140	140	149	148	157	156	165	99.8	110
18	158	167	168	177	178	188	188	199	197	208	126	139
20	195	206	207	219	219	232	232	245	243	257	156	172
22	236	249	251	265	266	281	281	297	294	311	189	208
24	280	297	298	316	316	334	334	353	350	370	225	248
26	329	348	350	370	371	392	392	415	411	435	264	291
28	382	404	406	429	430	455	455	481	476	504	306	337
30	438	463	466	493	494	523	523	552	547	579	351	387
32	498	527	530	561	562	594	594	628	622	658	399	440
34	563	595	598	633	634	671	671	709	702	743	451	497
36	631	667	671	710	711	752	752	795	787	833	505	557
38	703	744	748	791	792	838	838	886	877	928	563	621
40	779	824	828	876	878	929	929	981	972	1030	624	288
42	859	908	913	966	968	1020	1020	1080	1070	1130	688	759
44	942	997	1000	1060	1060	1120	1120	1190	1180	1240	755	832
46	1030	1090	1100	1160	1160	1230	1230	1300	1290	1360	825	910
48	1120	1190	1190	1260	1260	1340	1340	1410	1400	1480	899	991
50	1220	1290	1290	1370	1370	1450	1450	1530	1520	1610	975	1080
52	1320	1390	1400	140	1480	1570	1570	1660	1640	1740	1050	1160
54	1420	1500	1510	1600	1600	1690	1690	1790	1770	1870	1140	1250
56	1530	1610	1620	1720	1720	1820	1820	1920	1910	2020	1220	1350
58	1640	1730	1740	1840	1850	1950	1950	2060	2040	2160	1310	1450
60	1750	1850	1860	1970	1980	2090	2090	2210	2190	2310	1400	1550

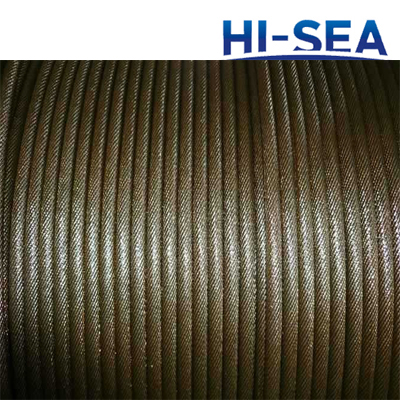

Non-rotating Steel Wire Rope with Many Layers

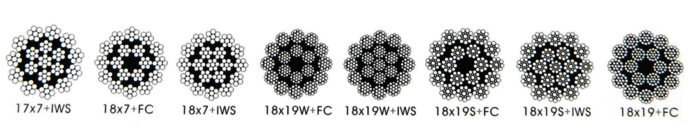

Sketch of Non-rotating Steel Wire Rope with Many Layers
