Single Route Hook Blasting Surface Equipment

Single Route Hook Blasting Surface Equipment

This series uses multiple-step and rotating point fixed method to clean away the antiquated sand and oxidation layer from the surface quickly, and makes the surface bright and clean. It is mainly used for the fitting of vehicles such as the bolster, side frame, coupler and coupler yoked, also for cleaning the casting and workpieces with the similar size.

Main Parameters

Diameter	Q383, Q483	Q385, Q485	Q4810
Cleaning workpiece size(mm)	800*1200	1000*1500	1000*2500
Number of work position	2	2	2
Quantity of impeller head	4	4	6
Impeller head volume (KG/min)	4*250	4*250	6*250
Impeller head power (KW)	4*15	4*15	6*15
Max hangering weight (KG)	300	300	1000
Productivity hanger/h	30-60	30-60	40-60
Size of the cleaning room (mm)	768020002900	768020002900	768020003800
Total air rate volume (m/h)	17000	19000	19000
Total power( except for dust cleaning) KW	73,15	73,15	114,72

Working Room

Single Route Hook Blasting Surface Equipment

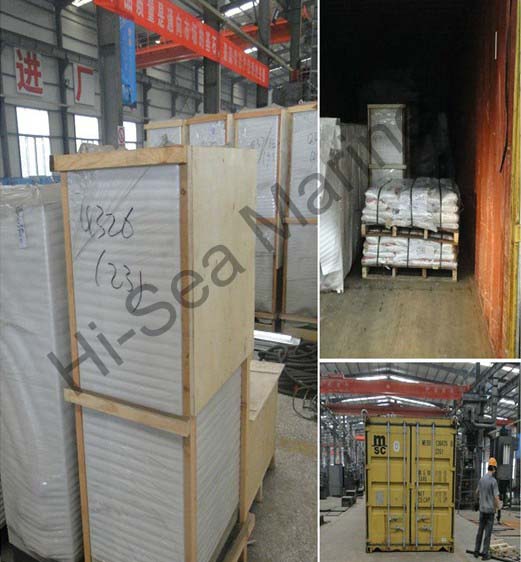

Packing

Single Route Hook Blasting Surface Equipment
