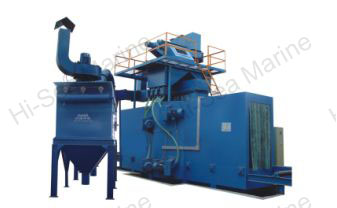

Shot Blasting Machine

1) The H-beam shot blasting machine is mainly used to purge the surface rust of welded component, H-shaped billet bar, box iron, angle iron, steek plate, etc. After the treatment by rotoblast, the surface of structure is optimized and accordingly the antirust properth is improved.

2) Electrical power condition:220V~380V/50HZ or as the customers' demand.

Model	HS0816	HS1018	HS1220
Section Size	800*1600mm	1000*1800mm	1200*2000mm
Length	3000*12000mm	3000*15000mm	3000*15000mm
Surface Clearness	A-B Sa2~Sa2 ½	A-B Sa2~A-BSa2 ½	A-B Sa2~A-BSa2 ½
Surface Roughness	15-50	15-50	15-50
Number of Blast Wheel	8	8	8
Speed	8*200kg/min	8*200kg/min	8*200kg/min
Power	8*11kw	8*11kw	8*11kw
Payload	1000kg/m	1000kg/m	1000kg/m
Delivery Speed	0.5-5m/min	0.5-5m/min	0.5-5m/min
Dust Collection	12000m3/h	12000m3/h	12000m3/h
Conveying capacity	120T/h	120T/h	120T/h
System Size	677021002900mm	720023003250mm	720025203650mm
Hole Depth	1950mm	1950mm	1950mm
Overall Power	135kw	140kw	140kw

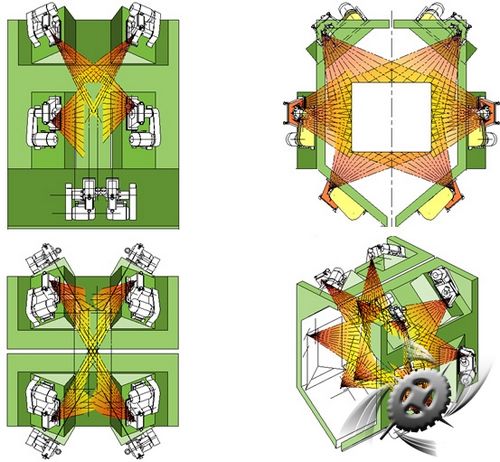

Shematic Diagram

Shot Blasting Machine

Balls
