Efficient Impeller Head
[Search Related Products]
The efficient impeller head is one of the sand blast machine general parts.
The blasting angle can be adjusted according to the demands.

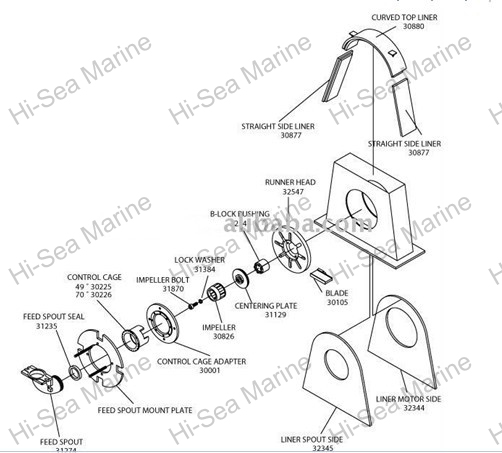

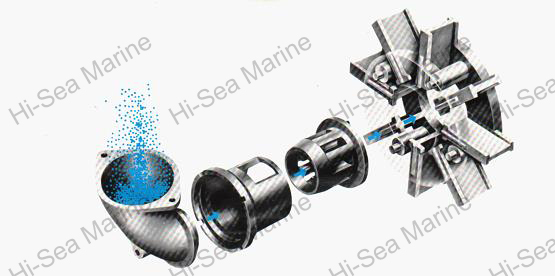

It is east to replace the blades. When replaced, control cage and the impeller are got out, so the abrasion of them can be checked.
Because of the working sites, Blades, back plates and some other spare parts, as the wearing parts, need to be replaced regularly to make sure the operation of the machine.
Technical Parameters:
| Model | Impeller Speed | Shot Speed | Radial Scattering Angle | Axial Scattering Angle | Shot-blasting Capacity | Motor Power | Directional set opening Angle |
| r/min | m/s | kg/min | kw | ||||
| Q3023ข๑ | 2600 | 63 | -60กใ | -8กใ | 190 | 11 | 60กใ |
| Q3023ข๒ | 2600 | 63 | -60กใ | -8กใ | 190 | 11 | 60กใ |
| Q3024ข๑ | 2350 | 67 | -60กใ | -8กใ | 240 | 15 | 60กใ |
| Q3024ข๒ | 2350 | 67 | -60กใ | -8กใ | 240 | 15 | 60กใ |
| Q3025ข๑ | 2200 | 66 | -60กใ | -8กใ | 270 | 18.5 | 60กใ |
| Q3025ข๒ | 2200 | 66 | -60กใ | -8กใ | 270 | 18.5 | 60กใ |
| Q3025ข๑ | 2200 | 66 | -60กใ | -8กใ | 320 | 22 | 60กใ |
| Q3025ข๒ | 2200 | 66 | -60กใ | -8กใ | 320 | 22 | 60กใ |
| Q3110 | 2300 | 70 | -60กใ | -8กใ | 100 | 7.5 | 60กใ |
| Q3110E | 2350 | 70 | -60กใ | -8กใ | 100 | 11 | 60กใ |
| Q3113B | 2350 | 65 | -60กใ | -8กใ | 190 | 11 | 60กใ |
| Q305 | 2200 | 80 | -60กใ | -8กใ | 120 | 11 | 60กใ |
| Q305A | 2200 | 80 | -60กใ | -8กใ | 120 | 11 | 60กใ |
| Q305B | 2200 | 80 | -60กใ | -8กใ | 120 | 11 | 60กใ |
| Q304A | 2300 | 70 | -60กใ | -8กใ | 100 | 7.5 | 60กใ |
| Q0511ข๑ | 2250 | 62 | -60กใ | -8กใ | 280 | 22 | 60กใ |
| Q0511ข๒ | 2250 | 62 | -60กใ | -8กใ | 280 | 22 | 60กใ |
| Q063 | 2800 | 67 | -60กใ | -8กใ | 100 | 5.5 | 60กใ |
| Q034ข๑ | 2600 | 67 | -60กใ | -8กใ | 240 | 15 | 60กใ |
| Q034ข๒ | 2600 | 67 | -60กใ | -8กใ | 240 | 15 | 60กใ |
| Q034ข๑ | 2600 | 67 | -60กใ | -8กใ | 300 | 18.5 | 60กใ |
| Q034ข๒ | 2600 | 67 | -60กใ | -8กใ | 300 | 18.5 | 60กใ |
| Q035ข๑ | 2250 | 76 | -60กใ | -8กใ | 400 | 30 | 60กใ |
| Q035ข๒ | 2250 | 76 | -60กใ | -8กใ | 400 | 30 | 60กใ |
| Q2ZQ01ข๑ | 2200 | 76 | -60กใ | -8กใ | 450 | 30 | 60กใ |
| Q2ZQ01ข๒ | 2200 | 76 | -60กใ | -8กใ | 450 | 30 | 60กใ |
| QH400ข๑ | 2350 | 75 | -60กใ | -8กใ | 240 | 11 | 60กใ |
| QH400ข๒ | 2350 | 75 | -60กใ | -8กใ | 240 | 11 | 60กใ |
| QH400ข๑ | 2350 | 75 | -60กใ | -8กใ | 280 | 15 | 60กใ |
| QH400ข๒ | 2350 | 75 | -60กใ | -8กใ | 280 | 15 | 60กใ |
| QH400ข๑ | 2350 | 75 | -60กใ | -8กใ | 340 | 18.5 | 60กใ |
| QH400ข๒ | 2350 | 75 | -60กใ | -8กใ | 340 | 18.5 | 60กใ |
| QH400ข๑ | 2350 | 75 | -60กใ | -8กใ | 360 | 22 | 60กใ |
| QH400ข๒ | 2350 | 75 | -60กใ | -8กใ | 360 | 22 | 60กใ |
