Single Arm Rescue Boat Davit with crane

Product Description

This single arm rescue boat davit with crane uses hydraulic drive rotary type,by its own gravity of the boat to make it down to the water,which could make the boat slew to outboard in case of losing of the power supply.While lowering the ,the sailors in the boat could pull the remote control steel rope,through the pulley around the reel.To lift the winch hammer to control the boat\raft lowering or stop.This also could be operated by sailors on the operation deck. The winch is use of motor driven gear box and gear box with centrifugal speed and manual brake function delegated.The device is designed and manufacturing according to the latest SOLAS standards and international standards.

Technical Parameter:

Max. Working load

Hoisting load

Hoisting speed

Landing speed

Rope capacity of the reel

Rotation Radius

21KN

14KN

18m\min

40-60m\min

30m

3600-4500mm

23KN

14KN

3600-5400mm

23KN

18KN

3600-5000mm

Main Technical Parameter the Single Arm Rescue Boat Lowering Device

Max. Working load

Rope capacity of the reel

Maximum Rotation Angle

Landing speed

Rotation Radius

30KN

30m

330º

11-15m\min

4100-5000mm

15KN

4100-7300mm

30KN

4100-5500mm

Main Technical Parameter of Crane

Single Arm Rescue Boat Davit with crane

Drawing of Single Arm Rescue Boat Davit with Crane

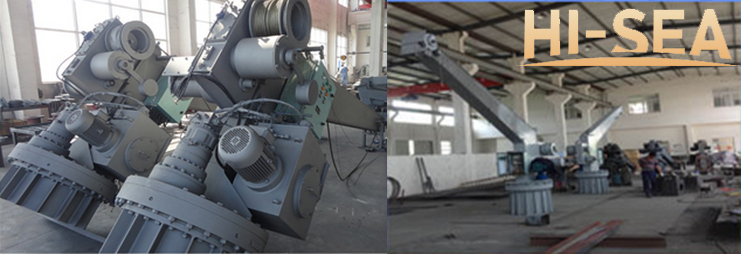

Single Arm Rescue Boat Davit with crane

Single Arm Rescue Boat Davit with Crane
