Gravity Roller or Sliding Track Davit

Product Description

The Gravity Roller or Sliding Track Davit consists of two arms which slide over two guides.This device launches the boat to the water surface by the boat's own gravity and slews the boat or raft outboard under the condition of loss of electricity by the hydraulic.While launching,the passengers could pullthe remote control cable in the boat to launch or stop rescue boat or raft. As well, the crews can operate it on the deck.This davit meets the SOLAS 1974, the international life saving equipment rules LSA and IMO, MSC81 (70) and other regulatory requirements.

The Gravity Roller or Sliding Track Davit:

Various possibility of interfacing to ship's structure

Manual browsing

Can be used on open or recessed deck

Use electrical winches

Suitable for all types of Life/Rescue boat

Other sizes/dimensions available on request

Basic specification for enquiry:

Required lifting capacity

Outreach ĘC min / max

Lifting height

Lifting speed

Luffing time

Self-weight of the davit

Power pack: (hydraulic, electric, or any other)

Power source

Required Classification societies

Specifications:

Max.working load(KN)

Dimension(mm)

Winch load(KN)

A

B

C

L

50

1150

2200

2800

4600

48

55

1250

2000

2650

5480

48

60

1250

2400

3000

4950

63

65

1300

2200

3100

6000

48

80

1525

2540

3500

5250

63

85

1600

2680

3500

6600

63

105

1700

2800

3600

6700

100

138

1900

3250

4500

8000

100

170

2300

3600

5200

10000

125

All the measures can be tailored according to your requests.

Gravity Roller or Sliding Track Davit

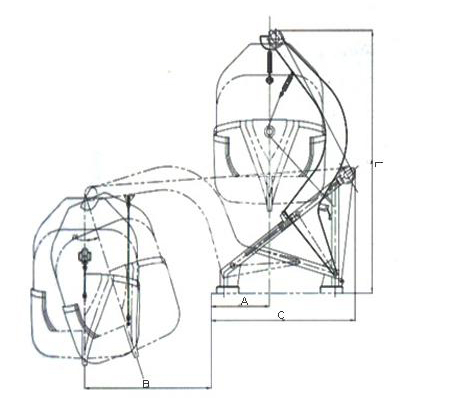

Drawing of Gravity Roller or Sliding Track Davit

Gravity Roller or Sliding Track Davit

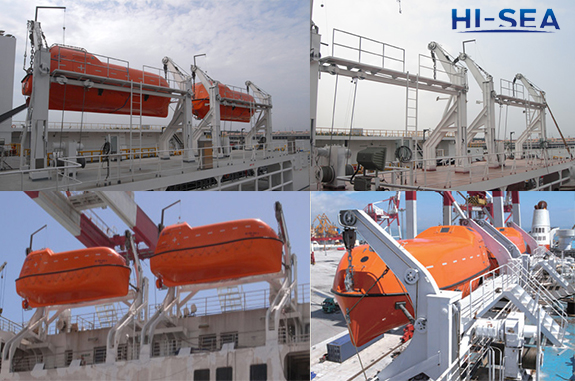

Pictures of Gravity Roller or Sliding Track Davit
