PA Type Offshore Davit

Product Description The PA Type offshore Davit consisting of a fixed structure has the capacity to launch lifeboat fully loaded using gravity only. We are offering our customers an excellent quality range of PA Type Offshore Davits, which are manufactured from high grade quality raw materials. Our PA Type Offshore Davits are available at industrial leading price.

The Platform Davit:
• Twin hooks for Lifeboats
• Single hooks for Rescue boats
• Minimum of maintenance
• Other sizes/dimensions available on request

Basic specification for enquiry:

Required lifting capacity

Outreach ĘC min / max

Lifting height

Lifting speed

Luffing time

Self-weight of the davit

Power pack: (hydraulic, electric, or any other)

Power source

Required Classification societies


Quality Process Certifications:

CCS,DNV,ABS,LRS,IRS,GL,BV,RINA,NK,KR

Specifications:

S.W.L
(KN)

Main Dimensions(mm)

Suitable Boat

A

B

H1

H2

65

1400

2870

2200

3600

5m-7.5m

85

1730

3550

2375

3650

7.5m-8m

105

1750

3600

2400

3900

8.5m

138

2130

4250

2700

4050

9m-10m

Specifications of Other types:

Working Load(KN)

Main Dimension(mm)

A

B

H1

H2

85KN

1400

2900

2200

3600

110KN

1750

3600

2400

3900

140KN

2150

4200

2700

4000

All the measures can be tailored according to your requests.

PA Type Offshore Davit

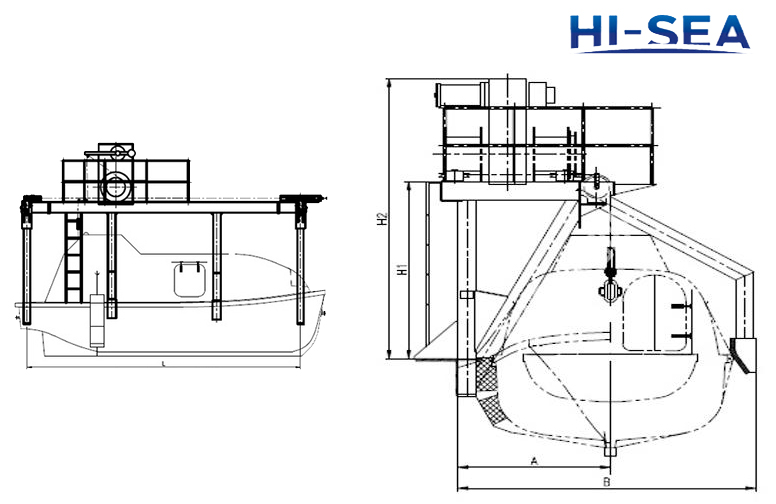

Drawing of PA Type Offshore Davit

PA Type Offshore Davit

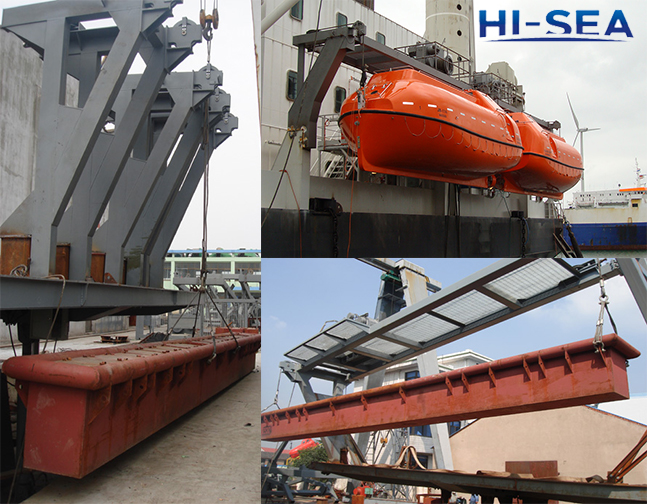

Pictures of PA Type Offshore Davit
