Free Fall Lifeboat Davit

Product Description

The Free Fall Lifeboat Davit is a special equipment for lowering free-fall life boat; In an emergency condition, the life boat can be launched into the water fast.And it conforms to the requirement of the amendments to SOLAS 1996----MSC.47(66) , International LSA Code MSC.48(66),IMO Resolution MSC81(70) and MSC.216(82), MSC.218(82) and MSC.226(82).

More details:

The Freefall Davit placed at the stern of the ship consists of a launch ramp davit arm, winch and hydraulic unit

Quick get away from sinking vessel

Always standby for launch

Launching ramp for freefall lifeboats in a welded or flanged box girder execution

Suitable for all types of Freefall boats

Other sizes/dimensions available on request

Specifications:

Working Load

(KN)

Max Recovery Load

(KN)

Min Lowering Load

(KN)

Hoisting Speed

(m/min)

Ramp angle

Drum Capacity

(m)

55

42

26

>3

35

45

70

45

35

3~6

50

Type

Description

Size

Capacity

Weight

Full weight

Suitable davit

4.9m

Ordinary type

4.9x2.18x3.0m

16P

2580kg

3900kg

55KN free-fall life boats launching appliances

fire resistant type

2870kg

4190kg

5.9m

Ordinary type

5.9x2.75x3.1m

16P-26P

3055kg

5200kg

fire resistant type

3270kg

5415kg

6.0m

Ordinary type

6.0x2.32x3.1m

20P

3000kg

4650kg

fire resistant type

3300kg

4950kg

6.75m

Ordinary type

6.75x2.75x3.1m

32P

3530kg

6170kg

70KN free-fall life boats launching appliances

fire resistant type

3840kg

6480kg

Other types:

Specifications of 55-300KN Free Fall Lifeboat Davit:

Max. Safety working load

Max. hoisting load

Rope capacity of the reel

Hoisting speed

Hoisting speed wire rope

55KN

42KN

50M

3m/min

20-1819-1770

65KN

42KN

50M\td>

3m/min

20-1819-1770

75KN

50KN

75M

3m/min

20-1819-1770

100KN

60KN

100M

3m/min

20-1819-1770

150KN

100KN

110M

3m/min

20-1819-1770

300KN

190KN

220M

3m/min

20-1819-1770

All the measures can be tailored according to your requests.

Free Fall Lifeboat Davit

Drawing of Free Fall Lifeboat Davit

Free Fall Lifeboat Davit

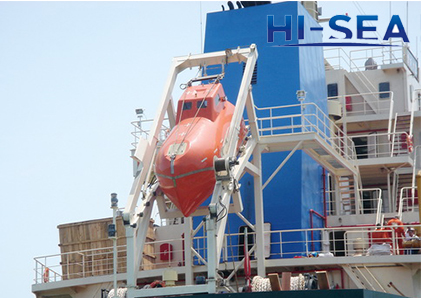

Picture of Free Fall Lifeboat Davit
