Gravity Luffing Arm Type Davit

[Search Related Products]

Gravity Luffing Arm Type Davit

Product Description

The Gravity Luffing Arm Davit is lowering lifeboat and rescue boat depending on boat self weight, and recovering the lifeboat and rescue boat using electric boat winch.The winch with the motor is used for recovering the life boat with 2 persons or rescue boat with 6 persons and back to the boarding.

Specifications:

S.W.LKN

MAIN DIM.(mm)

SUITABLE FOR LIFE BOAT CAPACITY

A

B

C

D

40

1200

2000

2600

5200

20P

57

1250

2000

2650

5500

30P

67

1300

2200

3100

6000

40P

90

1600

2680

3500

6600

60P

110

1700

2800

3600

6700

70P

138

1900

3250

4500

8000

90P

170

2300

3600

5000

10000

150P

All the measures can be tailored according to your requests.

Gravity Luffing Arm Type Davit

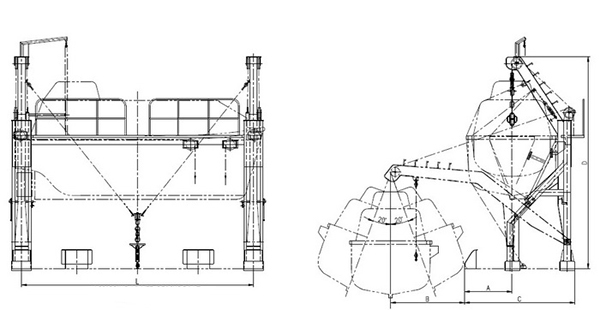

Drawing of Gravity Luffing Arm Type Davit

Other specifications of Gravity Luffing Arm Type Davit:

Max. Working Load(KN)

Main Dimensions

Totally Weight(kg)

B(mm)

H(mm)

14

1400

4800

~1800

30

1400

5100

~2820

65

1600

5600

~3500

90

1650

6600

~5000

120

1800

7500

~6500

45

1500

5910

~3200

65

2170

6070

~3530

All the measures can be tailored according to your requests.

Gravity Luffing Arm Type Davit

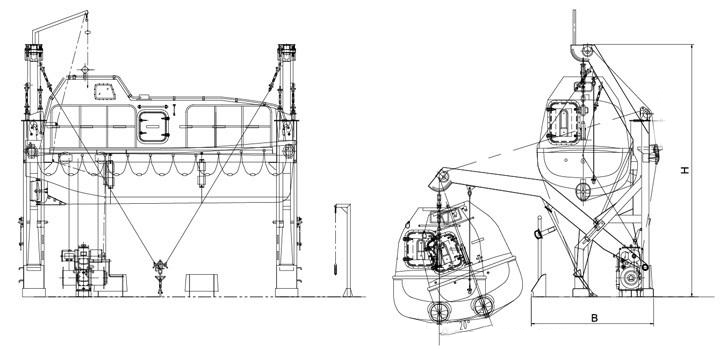

Drawing of 14KN-120KN Gravity Luffing Arm Type Davit

Gravity Luffing Arm Type Davit

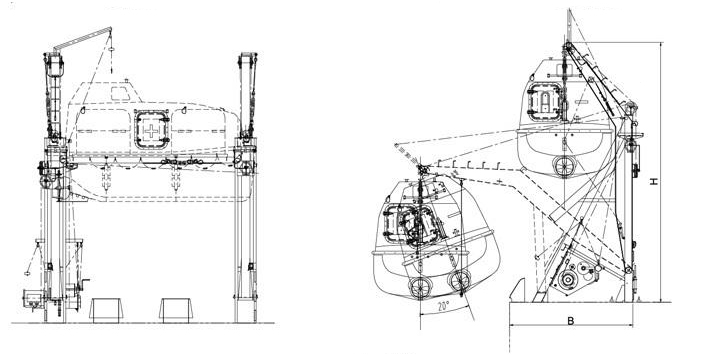

Drawing of 45KN-65KN Gravity Luffing Arm Type Davit


Specifications of 60KN-110KN Gravity Luffing Arm Type Davit:

Working Load(KN)

Main Dimension (mm)

Boat Winch

A

B

C

H

Working Load(KN)

60

2700

1300

2000

5500

50

85

3500

1600

2700

6600

75

110

3600

17500

2800

6700

100

All the measures can be tailored according to your requests.


Gravity Luffing Arm Type Davit

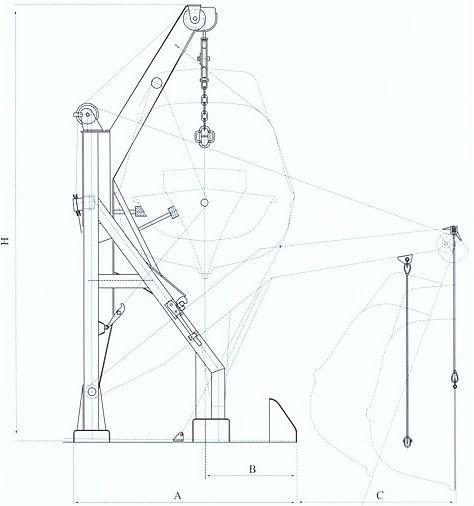

Drawing of 60KN-110KN Gravity Luffing Arm Type Davit

Gravity Luffing Arm Type Davit

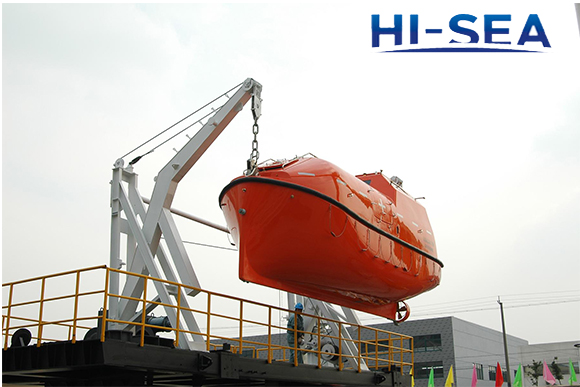

Picture of Gravity Luffing Arm Type Davit

Gravity Luffing Arm Type Davit

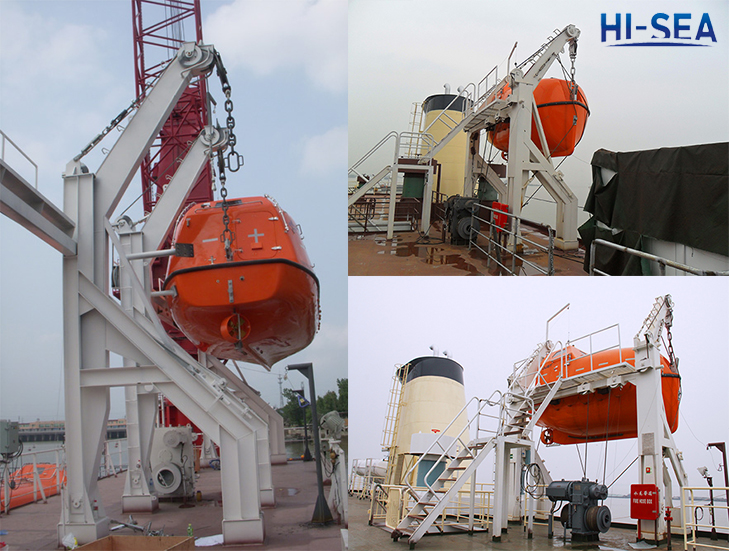

Pictures of Gravity Luffing Arm Type Davit
