MMO Flexible Anode for Impressed-current Cathodic Protection


MMO Flexible Anode for Impressed-current Cathodic Protection

Anode-flex (Flexible Anode) is the core component of the cathodic protection system. It is a linear, flexible and carbon based anode system, being installed in the pipeline, tanks, or other protected structure nearby, and connected to the anode which is connected with external power supply, while the oil tank and pipeline are connected to the negative electrode of the external power supply to form a circuit. After power on, the right amount of protection current can be evenly dispersed through the wire to each part so that the protected body is fully protected.

Anode-flex system is composed of 6AWG copper wire, conductive polymer, pure activated carbon, acid resistant material layer, woven protection net and other basic units.

Product Characteristics

A. The central copper conductor having the conductive polymer as auxiliary material plays a key role in flexible anode. This structure can not only prevent the copper core from being corroded by chemical corrosion, and can ensure the long distance transmission of the current. At the same time, there is a small amount of cathodic protection current continuously spread in the conductive polymer auxiliary layer, making the full length of the auxiliary layer have a current penetration.

B. The outer layer of the conductive polymer is active carbon of high performance, and the outer layer is wrapped with a layer of acid and alkali resistance. This structure can make the activated carbon loosed in the field easy to handle, thus simplifying the installation of the site program.

C.The flexible anode can be installed near the protected member to solve the problem of shielding and interference;

D. Flexible anode for non corrosive anode, will not produce environmental pollution.

E. Long service life, high reliability, easy installation

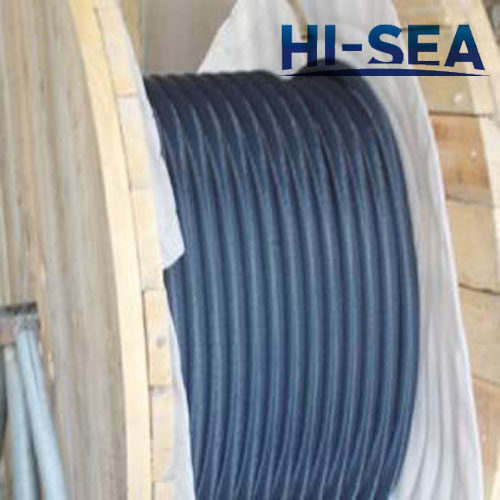

Anode-flex Flexible Anode

MMO Flexible Anode for Impressed-current Cathodic Protection
