Marine Electrical Fire Damper

Applications:

It mainly applies to the ventilation and air conditioning system such as ships and drilling platforms, and also can be used for the ventilation and air conditioning system of all kinds of buildings and key departments.

Features:

Available material: carbon steel, 304 stainless steel, 316L stainless steel, etc.

When the temperature in the air duct reaches 70±3°C, the temperature fuse will fuse and automatically close the air brake;
The air lock is turned on by power and closed by power. Optional electrical system DC24V/AC220V/AC110V.
An electrical signal is output when the air lock is opened or closed.
Air lock size according to customer requirements. Can provide ABS, BV, CCS, DNV, GL, LR, NK, KR, such as the type approval certificate or classification society certificate of product inspection.

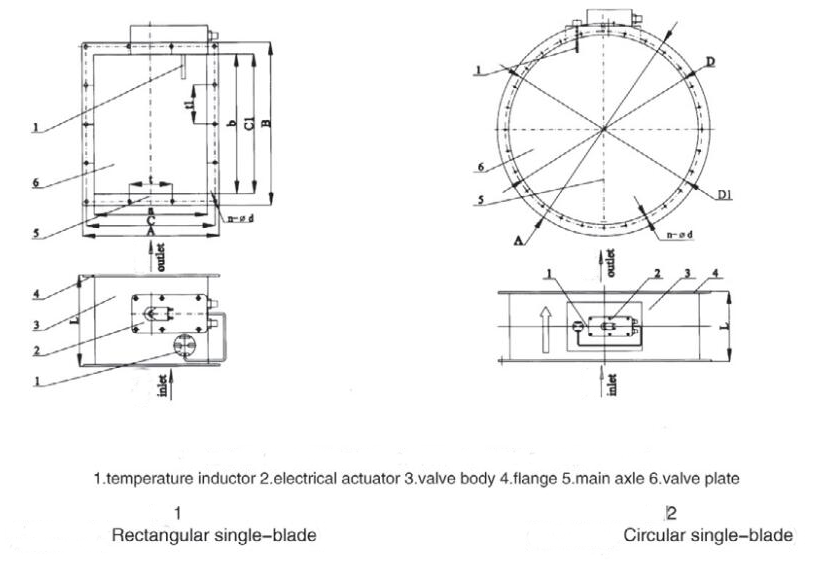

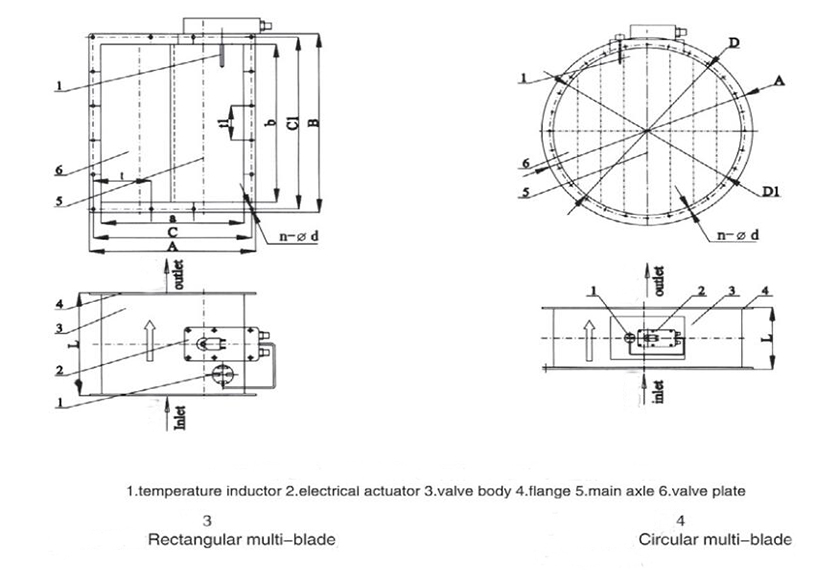

Outline Drawing:

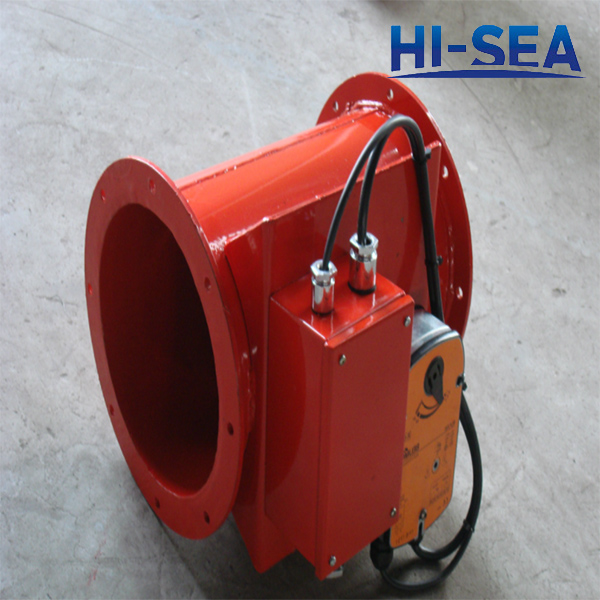

Pictures of Marine Electrical Fire Damper
