Aluminum Fire Damper

[Search Related Products]

Aluminum Fire Damper


Aluminum Fire Damper Specification:


In case of a fire,fire dampers shut automatically to prevent the propagation of fire and smoke through ductwork to adjacent designated fire compartments,The fire dampers are tested,Local requirements and building inspectorate approvals are essential in the countyr where the units are to be installed.


Correct approved installation locations are in solid walls and ceiling slabs,on the face of solid walls,adjacent to and remote from solid walls,upright on solid ceiling slabs,in lightweight partition walls,in lightweight fire walls,and in shaft walls,Installation in horizontal and vertical ducts,Airflow direction is not critical,When installed in walls or ceiling slabs combustible ventilation ducting may be connected directly to the fire damper,In the case of fire,the damper is triggered at 72¡æ or 95¡æ(for use in warm air ventilation system)either by a fusible link or thermoelectrically with a spring return,The fire dampers have two inspection accesses.





Aluminum Fire Damper Features:



Retangular fire damper

complies with the European product standard DIN EN 15650

EG-Certificate of conformity

BC1-606-4645-15650.11-4651

Tested for fire resistance properties according to EN 1366-2

Classification according to EN 1350-3

Reduced diffrential pressure and sound power level

Dry mortarless installation with installation kit

Remote controlled with spring return actuator




Aluminum Fire Damper Dimension:


Range

Type

Construction details

Sealing

Classification












200X200
up to
1500X800
(mm)


Rigid floor

Aerated concrete
min.125mm,p>600kg/m3
reduced casing distance100mm
reduced distance to supporting
construction¡Ý40mm

In the floor
with mortar
(wet mounting)

EI90(h¡£i ↔o)
S-£¨300Pa£©












Rigid wall

Aerated concrete
min.100mm,p>500kg/m3
reduced casing distance70mm

In the floor
with mortar
(wet mounting)

EI90(Ve i ↔o)
S-£¨300Pa£©

Aerated concrete
min.100mm,p>500kg/m3
reduced distance to supporting
construction¡Ý40mm

In the floor
with mortar &
Partial mineral
wool

EI90(Ve i ↔o)
S-£¨300Pa£©

Aerated concrete
min.100mm,p>500kg/m3

In the floor
with mortar
(dry mounting)

EI90(Ve i ↔o)
S-£¨300Pa£©





Aerated concrete
min.100mm,
p>500kg/m3



Casing

Protection
with
Promated H/
Promated
LS35
and mineral wool

Onto the wall
installation kit
(dry mounting)

EI90(Ve i ↔o)
S-£¨300Pa£©


Casing&
ducting

Remote to a
distance of 260mm from wall installation
kit(dry mounting)

EI90(Ve i ↔o)
S-£¨300Pa£©

Remote from wall installation
kit(dry mounting)

EI90(Ve i ↔o)
S-£¨300Pa£©

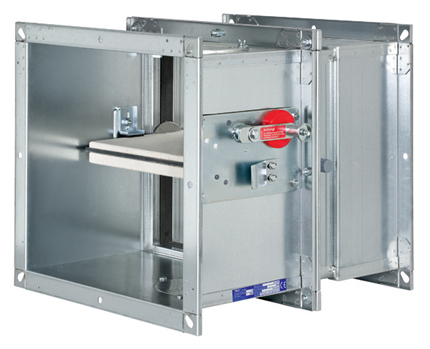

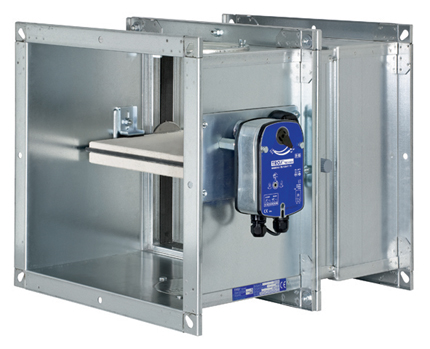

Aluminum Fire Damper:


Aluminum Fire Damper



Aluminum Fire Damper
