JIS F2001-1990 Bollard

JIS F2001-1990 Bollard

Our marine bollards are strictly produced complying with the industrial standard. JIS F2001 bollard is made for ship use according to Japanese Industrial Standard. Its appearance is free from defects such as cracks, flaw detrimental to service or rust and of good finish. Its applicable ropes are wire rope, manila and sisal fiber rope, synthetic rope for your reference. For more information, please feel free to contact us.

Features of JIS F2001-1990 Bollard

1. Double bitt bollard;

2. Bollard Standard: JIS F2001-1990;

3. Steel material;

4. Finish: Epoxy coating;

5. Nominal Diameters: 100 to 800mm;

6. Weight: 18.9 to 3071 kg;

7. 1 year warranty;

8. Certificate: CCS,ABS,BV etc.;

9. Can be customized

JIS F2001-1990 Bollard

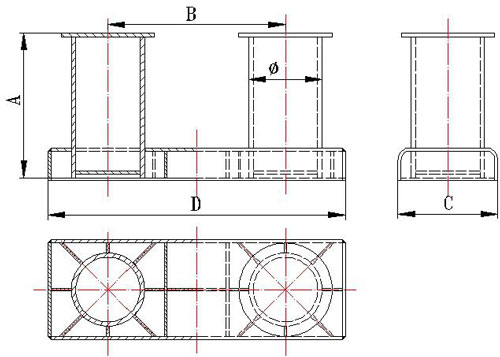

Drawing of JIS F2001-1990 Bollard

Nominal Dia.

Weight(kg)

Size(mm)

A

B

C

D

ŽÁ

100

18.9

196

250

165

445

114.3

125

29.4

246

315

195

540

139.8

160

44.7

316

400

225

670

165.2

200

79.5

378

500

290

860

216.3

250

139

470

630

360

1065

267.4

315

261

597

800

430

1300

318.5

355

361

663

890

480

1475

355.6

400

502

749

1000

550

1630

406.4

450

685

841

1130

620

1840

457.2

500

911

928

1250

690

2040

508.0

560

1208

1025

1380

750

2240

558.8

630

1601

1152

1570

820

2510

609.6

710

2252

1294

1750

960

2840

711.2

800

3071

1480

2000

1100

3240

812.8
