Heavy Duty Container Bridge Fitting

Heavy Duty Container Bridge Fitting

Heavy duty container bridge fitting is used for the horizontal or vertical connecting of upper adjacent container to spread the load of main lashing equipment. The use method of bridge fitting is simple. You only need to insert the two end of bridge fitting into the hole of container corner fittings, then turn the adjusting nut to tense the connecting of container.

Product Details:

1. Material:High quality casting steel

2. Type: Single type

3. Weight:8KG

4. Finish: Shop primer

5. Application: Container, shipping

6. Length: 260mm/380mm

7. M.B.L tension: 300KN

8. Customized design is available

9. All items are approved by major classification society

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

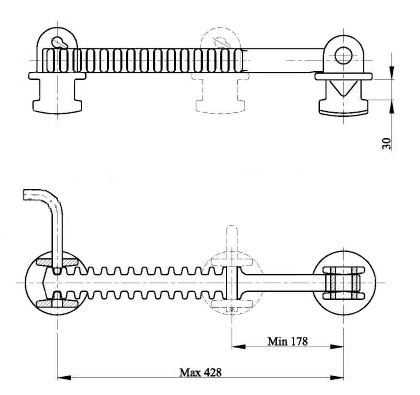

Sketch of the heavy duty container bridge fitting

Heavy Duty Container Bridge Fitting HSHD24
