Container Intermediate Twistlock

[Search Related Products]
Container Intermediate Twistlock

Container Intermediate Twistlock

Container intermediate twistlock is primarily used in the shipping industry to secure shipping containers. It is used to connect the corner castings of shipping containers. And it has a maximum breaking load of 500KN in tension, 420KN in shear, 2000KN in conpression.

Product Details:

1. Material:Forged steel

2. Surface treatment: Hot dip galvanized

3. Weight:4.5KG

4. Finish: Shop primer

5. Application: Container, shipping

6. M.B.L tension: 500KN

7. M.B.L shear: 420KN

8. M.B.L compression: 2000KN

9. Customized design is available

10. All items are proves by major classification society

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

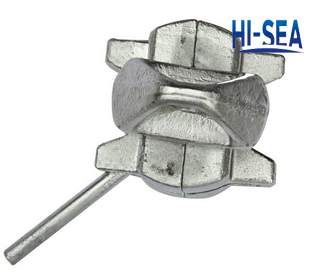

Container Intermediate Twistlock

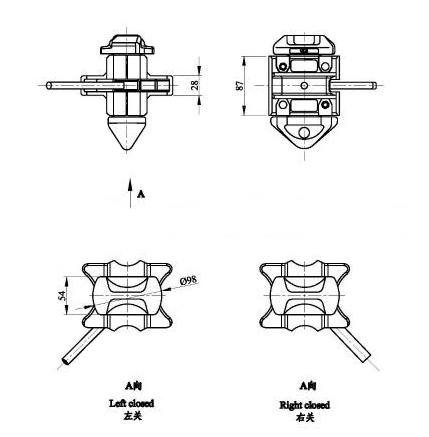

Sketch of the container intermediate twistlock

Container Intermediate Twistlock

Container Intermediate Twistlock HSCL27
