Container Lashing Turnbuckle

[Search Related Products]

Container Lashing Turnbuckle

Container Turnbuckle

Container lashing turnbuckle is used with lashing bars to secure container above deck on a container ship or barge. In the use of container, you should have all the slack taken out of the system, but not make the fitting to be too tight.

Product Details HSCL26:

1. Material:Forged steel

2. Surface treatment: Hot dip galvanized

3. Length: 1080-1500mm

4. Weight:15.4KG

5. Finish: Shop primer

6. Application: Container, shipping

7. M.B.L tension: 500KN

8. Customized design is available

9. All items are proves by major classification society

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

Container Lashing Turnbuckle

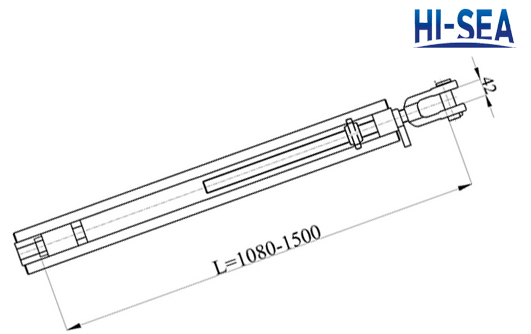

Sketch of the container lashing turnbuckle

Container Lashing Turnbuckle

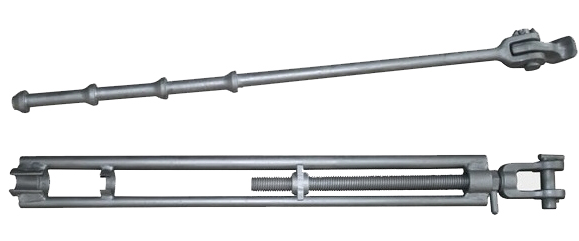

Knob Type Lashing Bar and Turnbuckle

Container Lashing Turnbuckle

Application of container lashing turnbuckle
