Air Foam Fire Monitor

Air Foam Fire Monitor

Air foam fire monitor produces and sprays foam to put out the long distant fires which caused by specific liquids or can spray water to put out the distant fires caused by solid substances. It is suitable for petrochemical industries, storage tank areas, hangars, warehouses, ports etc. It is also the best choice for marine ships, fixed offshore platforms, fire trucks and other places. If you’re interested in our fire monitors, please do not hesitate to contact us.

Product Specification:

Model Type: Air Foam Fire Monitor

Flow Rate: 24L/S,32L/S

Jetting Distance: water >45m, foam >40m

Connection Flange: DN80

Horizontal Rotation Angle: >180°

Pitch Rotation Angle: >±70°

Certificate: CCS, EC etc.

Technical Parameters:

Model		PP24C	PP32C
Rated Working Pressure(MPa)		0.5~1
Maximum Pressure(MPa)		1
Jetting Distance	Water	45m	>50m
	Foam	40m	>45m
Flow Rate	Water	24L/S	32L/S
	Foam	24L/S	32L/S

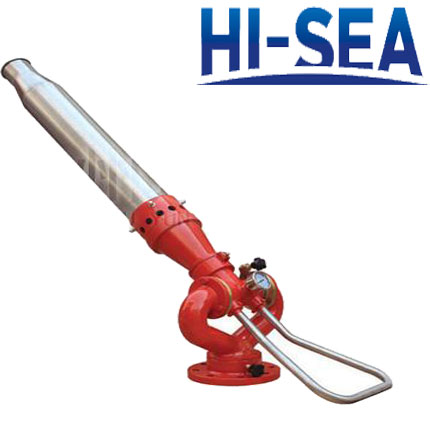

Air Foam Fire Monitor:
