Suspension Type Mini Electric Wire Rope Hoist

Suspension Type Mini Electric Wire Rope Hoist

Suspension type mini electricwire rope hoist have reached the international standard in term of prodution and design, which guarantee the security of using. It uses the 220V civil power supply, so it is suitable for daily use, industrial production line, the freight logistics and so on. The superior quality can more be shown when it is used in warehouse, dock and the limited narrow working place. It has advantages of beautiful shape, reasonable structure, convenient installation, small noise and safe usage.

Producct details:

1. Minimum capacity: 0.1T: maximum capacity: 0.25T

2. Standard lift height: 20m

3. Power supply: 220V

4. Insulation grade: F

5. Usage: lifting, fixing, binding, traction and so on.

6. The main parts of it adopt high quality steel product to ensure durability.

7. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the hoist in rain or very humid place.

4. Strictly prohibit people to work under it when it working.

5. Gear and spring should be maintained regularly to prevent brake failure.

6. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Modle		HXS-100F	HXS-150F	HXS-200F	HXS-250F
Rated voltage	V	AC 100/110/120 　220/230/240　　50/60Hz
Input power	W	580	780	1050	1200
Rated load	Kg	100	150	200	250
Diameter of chain	mm	φ 3.8		φ 4.2
Lifting speed	m/min	15		12
Lifting height	m	20
Net weight	kg	27		29

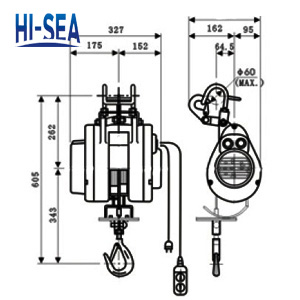

Sketch of the suspension type mini electric chain hoist

Suspension Type Mini Electric Wire Rope Hoist-A

Suspension Type Mini Electric Wire Rope Hoist-B
