Fixed Type Foot-mounted Electric Hoist

Fixed Type Foot-mounted Electric Hoist

Fixed type electric wire rope hoist has the advantges of compact structure, small volume, light weight, high efficient and simple maintenance. The superior quality can more be shown when it is used in warehouse, dock and the limited narrow working place. it could be widely used in factories, mines, electric power, construction site to install machine, lifting goods, load and unload vehicles.

Producct details:

1. Minimum capacity: 1T: maximum capacity: 16T

2. Standard lift height: 3m

3. Power supply: 380V/50Hz

4. Insulation grade: F

5. Usage: lifting, fixing, binding, traction and so on.

6. The main parts of it adopt high quality steel product to ensure durability.

7. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the hoist in rain or very humid place.

4. Strictly prohibit people to work under it when it working.

5. Gear and spring should be maintained regularly to prevent brake failure.

6. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)	1	2	4	6.3	10	16
Motor power(kw)	1.1/0.3	1./0.4	3/0.8	4.5/1.2	7.5/2	13/3.4
Lifting speed(m/min)	4.5/1.1	4.2/1.6	3.7/0.9	3.5/0.8	3.8/0.9	4/1
A(mm)	410	430	505	525	612	740
A0(mm)	192	194	245	280	309	358
B(mm)	244	244	300	339	374	442
Hmin(mm)	285	310	425	615	630	630
Φ(mm)	13	13	18	18	22	26
L1(mm) single speed	281	390	462	547	550	594
L2(mm) double speed	427	468	619	633	700	853

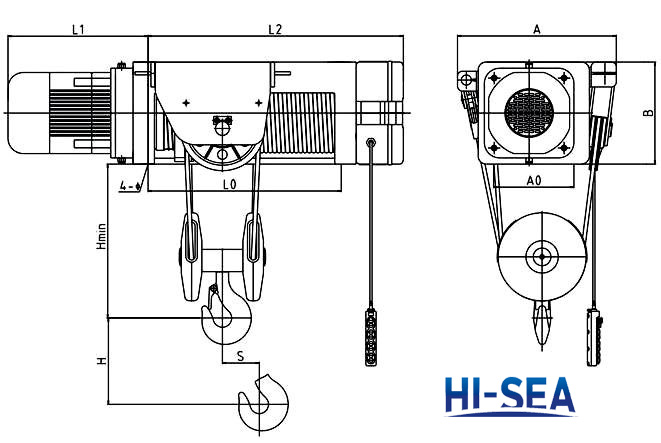

Sketch of the fixed type foot-mounted electri hoist
