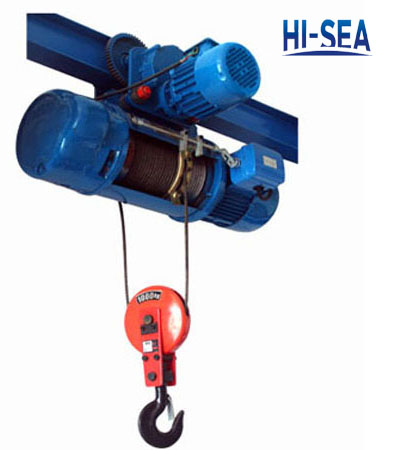

CD1 Type Electric Wire Rope Hoist

CD1 Type Electric Wire Rope Hoist

CD1 type electric wire rope hoist is a small lifting equipment. It has advantages of compact structure, light weight, small colume, versatile parts and so on. It can be installed on the I-beam alone, also can form a complete set of lifting equipment with electric or manual single beam, double beam and gantry crane. The lifting speed of it is normal; so it can satisfy the use requirement of general occasions.

Product details:

1. Minimum capacity: 0.25T: maximum capacity: 10T

2. Power supply: 380V/50Hz

3. Insulation grade: F

4. Usage: lifting, fixing, binding, traction and so on.

5. The main parts of it adopt high quality steel product to ensure durability.

6. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the hoist in rain or very humid place.

4. Strictly prohibit people to work under it when it working.

5. Gear and spring should be maintained regularly to prevent brake failure.

6. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)	0.25	0.5	1	2	3	5	10
Lifting height(m)	3-9	6-12	6-30	6-30	6-30	6-30	6-30
Lifting speed(m/min)	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)
Traveling speed	20(30)
Modle of I-beam orbit	16-22b	16-28b	16-28b	20a-32c	20a-32c	25a-63c	28a-63c
Voltage(V)	380	380	380	380	380	380	380
Frequency(Hz)	50	50	50	50	50	50	50

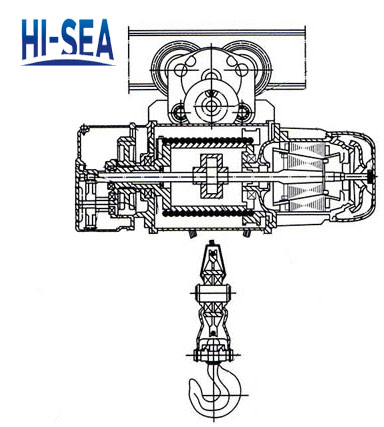

Sketch of the CD1 type electric wire rope hoist
