DHP Type Electric Chain Block

DHP Type Electric Chain Block

DHP type electric chain hoist is mainly used for large oil tank, climbing frame. So, it is also known as group of crane electric hoist. It is suitable for low-speed small trip of material handling, equipment installation, mining, engineering construction and so on. And it has the characters of slow lifting speed, light weight, hard body and small wear.

Producct details:

1. Minimum capacity: 1T: maximum capacity: 10T

2. Standard lift height: 3m

3. Power supply: 380V/50Hz

4. Insulation grade: F

5. Usage: lifting, fixing, binding, traction and so on.

6. The main parts of it adopt high quality steel product to ensure durability.

7. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the hoist in rain or very humid place.

4. Strictly prohibit people to work under it when it working.

5. Gear and spring should be maintained regularly to prevent brake failure.

6. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)

1

2

3

5

10

Test load(T)

1.25

2.5

3.75

6.25

12.5

Lifting speed(m/min)

0.26/0.9

0.26/0.9

0.26/0.9

0.26/0.9

0.26/0.9

Min.distace of hooks(mm)

300

380

470

600

730

Standard lift(m)

3

3

3

3

3

Motor power(kw)

0.5

0.8

1.1

1.5

0.8

Net weight(kg)

42

50

55

62

120

DHP Type Electric Chain Block

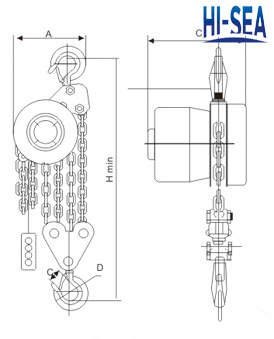

Sketch of the DHP type electric chain hoist

DHP Type Electric Chain Block

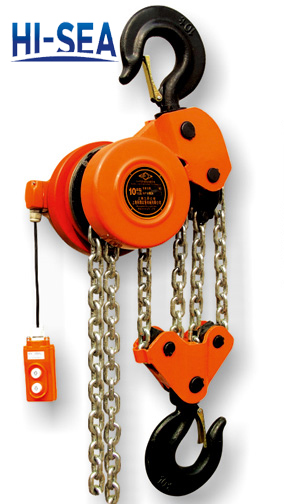

DHP Type Electric Chain Hoist
