Shipbuilding Bulb Flats

Shipbuilding Bulb Flats

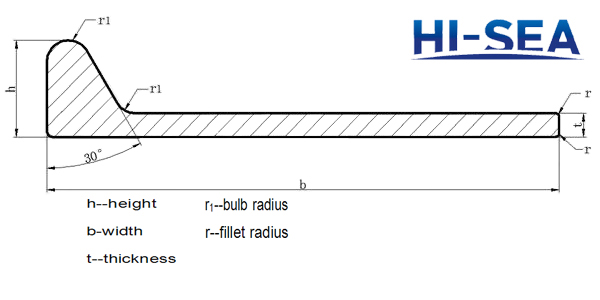

Shipbuilding bulb flats are a sort of steel sections made of specialized marine steel. The bulb plates are the plate stiffener of choice for the shipbuilding industry due to their excellent strength to weight ratio. They feature a unique shape--flat, with a short, tapered flange on one side--which provide significant benefits in shipbuilding stiffener application. they are economical, efficient, and reliable. These bulb flats are manufactured in accordance with GB/T 9945-2012 or EN10067. The shipbuilding bulb flats are produced by Chinese excellent steel mills which have strict quality management. We provide you a wide range of steel grades and dimensions. If you have any specific requirements, we will try our best to fulfill you.

Advantages of Hi-Sea:

1. We guarantee the quality of our products.

our shipbuilding bulb flats are produced by Chinese top steel mills with extremely strict quality management. Our bulb flats are made of marine steel certified by leading classification societies. The bulb flats are standard-sized with tiny tolerances. They comply with the requirements of GB9945-2012 or EN10067:1997.

2. We provide a wide range of steel grades and dimensions.

We are able to provide bulb flats made of steel grade from A, B, D, E to EH40. The dimensional range is from nominal size 80กม5mm to 430กม20mm. The regular length of bulb flats is in the range of 4~12m.

3. We provide you considerate service.

We have rich experience in import and export trade. We guarantee fast delivery.

The following table shows steel grades that we provide regularly for bulb flats:

Strength

Grade

Normal Strength

A

B

D

E

High Strength

AH32

DH32

EH32

AH36

DH36

EH36

AH40

DH40

EH40

NOTE

the above grades are certified by relevant classification societies, such as CCS, ABS, BV, LR, GL, RINA, KR, NK, CNV...

Shipbuilding Bulb Flats

/photos/Parameters-of-GB-9945-Shipbuilding-Bulb-Flats.docx

Shipbuilding Bulb Flats

/photos/Parameters-of-EN10067-Shipbuilding-Bulb-Flats.docx

Shipbuilding Bulb Flats

Shipbuilding Bulb Flats

Shipbuilding Bulb Flats

Shipbuilding Bulb Flats

Shipbuilding Bulb Flats
